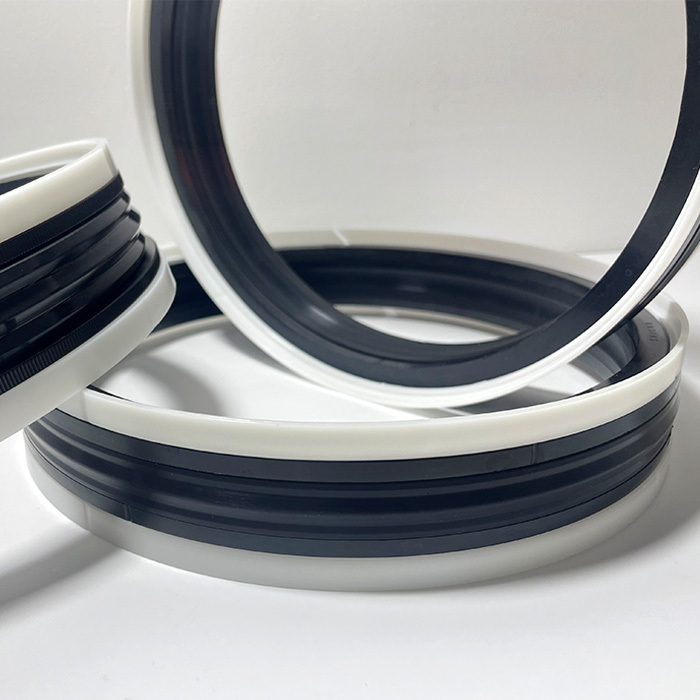

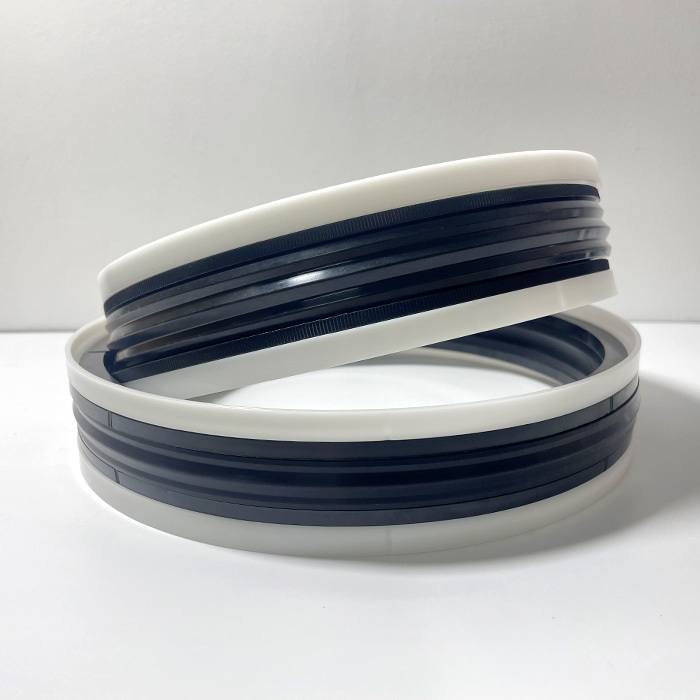

TPM-767669/787669 Five-piece Combination Seal 195*170/200*170 Italian TECNOTEX
| Place of Origin | CHINA/ LTALIAN |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | TPM-767669/787669 |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Piston Assembly Oil Seal | Color | Black And White |
|---|---|---|---|
| Speed | 0.5m/s | Shape | Circular |
| Material | NBR,PU | Operating Temperature | -30℃~+110℃ |
| Medium | General-purpose Petroleum-based Hydraulic Fluid | Performance | Highly Wear-resistant, Oil-resistant, And Corrosion-resistant With Excellent Air-tight Performance. |
| Highlight | TECNOTEX hydraulic cylinder seal kit |
||
You can tick the products you need and communicate with us in the message board.
| 767669 195*170*25.4*50.8 | |
|---|---|
| 767669 200*170*35.4*48.1 | |
| 767669 200*170*36*61 |
Product Description
Product Overview
The TPM Five-Piece Combination Seal is a sophisticated sealing solution designed to meet the rigorous demands of modern industrial applications. This innovative seal assembly integrates five precisely engineered components that work in harmony to provide superior sealing performance across a wide range of operating conditions.
Whether used in hydraulic systems, industrial machinery, or mobile equipment, the TPM Five-Piece Combination Seal delivers reliable leak prevention, extended service life, and reduced maintenance requirements. Each component is manufactured to exacting standards using high-quality materials selected for their specific performance characteristics.
Key Features & Benefits
Multi-Component Design
- Five specialized components working in unison for comprehensive sealing
- Addresses both static and dynamic sealing requirements
- Optimized contact pressure distribution for maximum efficiency
Durable Construction
- Premium materials selected for chemical resistance and longevity
- Resistant to hydraulic fluids, oils, and most industrial chemicals
- Reduced friction design minimizes wear and heat generation
Versatile Application
- Compatible with various hydraulic and pneumatic systems
- Available in multiple material options for specific environmental conditions
- Customizable dimensions to meet unique application requirements
Component Breakdown
TPM consists of five parts: the central part is nitrile rubber, two polyester support rings, and two polyoxymethylene guide rings. This unique combination generates very low friction under high-pressure working conditions. It is easy to install, highly wear-resistant, highly resistant to extrusion, and has minimal deformation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Options | NBR,PU |
| Operating Pressure | 0~0.05MPA |
| Maximum Speed | 0-25m/s |
| Temperature Range | -30~+110ºC |
Applications
The TPM Five-Piece Combination Seal is ideally suited for a wide range of industrial applications:
- Hydraulic cylinders and actuators
- Industrial presses and machinery
- Construction and agricultural equipment
- Mining and heavy equipment
- Mobile hydraulic systems
- Injection molding machines
- Steel and metal processing equipment
- Offshore and marine applications
Installation Guidelines
Proper installation is critical to achieving optimal performance from your TPM Five-Piece Combination Seal:
- Ensure all components are clean and free from damage before installation
- Verify housing and shaft/gland dimensions meet specifications
- Clean all surfaces thoroughly to remove contaminants
- Use proper installation tools to prevent damage to seal components
- Apply compatible lubricant to seal components before installation
- Ensure correct orientation of all components during assembly
- Torque hardware to recommended specifications
For detailed installation instructions specific to your application, please refer to the technical data sheet or contact our engineering support team.
