NBR Material Hydraulic Rod Buffer Seal dustproof Wiper Seal Sakagami SER 6*9*2/2.75
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | SER |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.15/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | NBR/FKM | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK | Style | SER |
| Size | 6*9*2.75 | Hardness | 80 Shore A |
| Temperature | -40~100℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston&rod Seal | ||
| Highlight | NBR Material Rod Buffer Seal |
||
You can tick the products you need and communicate with us in the message board.
| SER-003 | SER-004 | |
|---|---|---|
| SER-005 | SER-006 | |
| SER-008 | SER-009 | |
| SER-010 | SER-10A | |
| SER-011 | SER-012 | |
| SER-014 | SER-016 | |
| SER-018 | SER-020 | |
| SER-022 | SER-025 | |
| SER-030 | SER-032 | |
| SER-035 | SER-040 |
Product Description

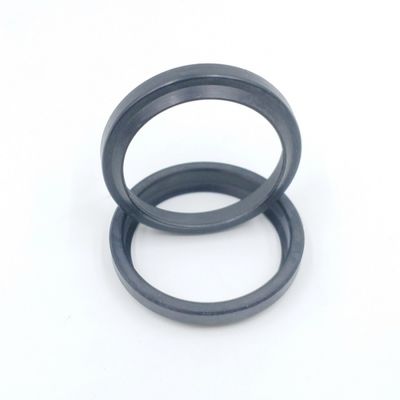

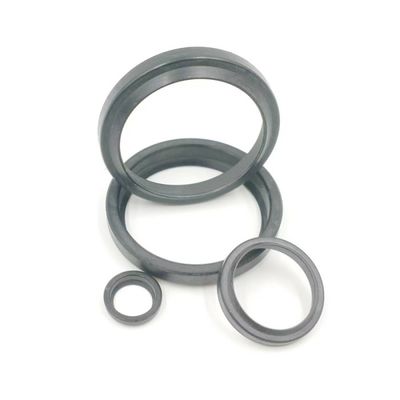

NBR Material Hydraulic Rod Buffer Seal Dustproof Wiper Seal Sakagami SER 6*9*2/2.75
SER Dust Seal, Hydraulic Buffer Rod Sealing, SER 6*9*2/2.75, NBR Material Wiper Seal, SAKAGAMI SER TYPE SEALING
Product Description
This is a dustproof ring without a U-shaped slot, designed for installation in smaller cross-sections where space is limited.
Product Characteristics
- Small Cross-Section Design: Compact size adapts to installation environments with limited space, ideal for precision instruments and small pneumatic tools.
- Excellent Sealing Performance: Effectively prevents gas or liquid leaks, maintaining system stability and ensuring normal equipment operation in both static and dynamic sealing conditions.
- Superior Wear Resistance: Withstands prolonged friction without damage, ensuring longer service life and reducing maintenance costs in frequently moving applications.
- Temperature Resistance: Maintains stable performance across various temperature ranges, preserving sealing function and physical properties in both high and low temperature environments.
Product Application
| Material | NBR |
| Sliding Speed | ≤0.5 M/S |
| Media | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Commonly Used Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Specifications
| ITEM | ID | OD | t | H |
|---|---|---|---|---|
| SER-003 | 3 | 6 | 2 | 2.5 |
| SER-004 | 4 | 7 | 2 | 2.5 |
| SER-005 | 5 | 8 | 2 | 2.5 |
| SER-006 | 6 | 9 | 2 | 2.5 |
| SER-007 | 7 | 10 | 2 | 2.5 |
| SER-008 | 8 | 11 | 2 | 2.5 |
| SER-009 | 9 | 12 | 2 | 2.5 |
| SER-010 | 10 | 13 | 2 | 2.5 |
| SER-10A | 10 | 14 | 2.9 | 3.2 |
| SER-011 | 11 | 15 | 2.9 | 3.2 |
| SER-012 | 12 | 16 | 2.9 | 3.2 |
| SER-014 | 13.6 | 18 | 2.9 | 3.2 |
| SER-016 | 16 | 20 | 2.9 | 3.2 |
| SER-018 | 18 | 22 | 2.9 | 3.2 |
| SER-020 | 20 | 24 | 2.9 | 3.2 |
| SER-022 | 22 | 26 | 2.9 | 3.2 |
| SER-025 | 25 | 31 | 4.3 | 4.7 |
| SER-030 | 30 | 36 | 4.3 | 4.7 |
Installation
The self-retaining rod seal/wiper profile SER is manually or automatically snapped into the installation housing while the piston rod is disassembled. Care must be taken to prevent sharp edges from damaging the wiping and sealing lips during assembly. Initial lubrication is essential for achieving maximum operational life.
Frequently Asked Questions
- How to choose materials?
The selection of materials depends on the operating environment, including media type, temperature range, pressure conditions, and other application-specific factors. - How to deliver the goods?
For small orders, we deliver via express carriers such as DHL, FEDEX, UPS, TNT. For large orders, we deliver by air or sea freight. - Are you a manufacturer?
Yes. We specialize in the production of various hydraulic and pneumatic sealing products. Our quality system is certified to ISO 9001:2015, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production. - Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for freight costs. - How is the quality?
All manufacturing processes conform to the ISO-9001:2015 quality system, with 100% inspection conducted before shipment to ensure product reliability.
