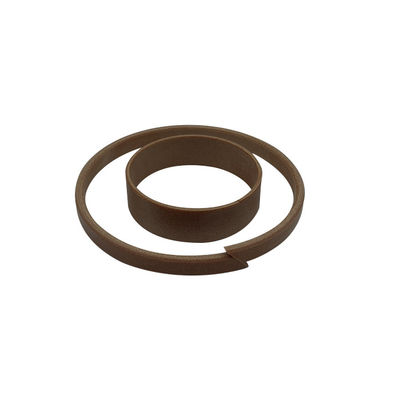

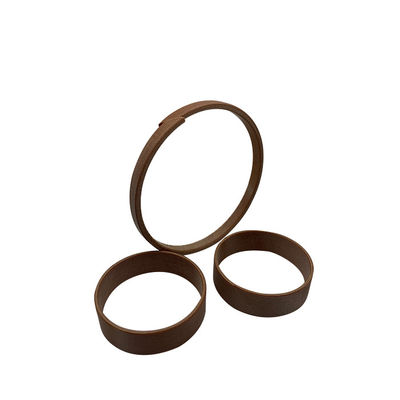

Phenolic Resin Piston And Rod Guide Ring Hydraulic Piston Seals Wear Ring FR Type
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Model Number | 9.5MM*2.5MM |
| Minimum Order Quantity | 1PCS |
| Price | USD0.10-10.00/Pcs |
| Packaging Details | 10PCS/BAG |
| Delivery Time | 1 Day if goods in stock. 7-15 Days if goods out of stock with molding. |
| Payment Terms | T/T, L/C |
| Supply Ability | 1000000 PCS /MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 9.5MM*2.5MM | Temperature Range | -50 To +120 ° C |
|---|---|---|---|
| Color | Brown Or Black | Pressure Range | ＜60Mpa |
| Application | Piston&Rod | Shape | Round |
| Material | Phenolic Resin | ||
| Highlight | Phenolic Resin Piston Guide Ring |
||
Product Description
FR Type Piston And Rod Guide Ring,Hydraulic Piston Seals Wear Ring,Phenolic Resin C/S 2.5mm ,Width 9.5mm
1. Product Description:

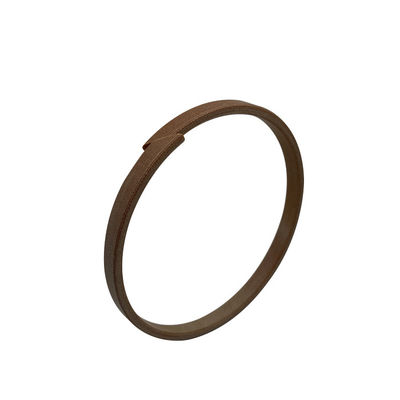

FR Guide ring is an open type, which is easy to install. Good abrasion resistance, suitable for the Hydraulic cylinder piston and rod.
2.APPLICATION:
| Raw Material | Phenolic Resin |
| Pressure | ＜60Mpa |
| Temperature Range | -50 to +120 ° C |
| Speed |
≤0.5m/s
|
| Type | Inclined Incision |
| Color | Brown Or Black |
| Use Part | Piston&Rod |
3.SPECIFICATION:
| t | H |
| 2.5MM | 9.5MM |
| 2.5MM | 9.7MM |
| 2.5MM | 14.8MM |
| 2.5MM | 19.7MM |
| 2.5MM | 24.7MM |
| 2.5MM | 30MM |
| 2.5MM | 40MM |
4.Delivery & Payment Term:
Date Of Delivery:
1-2 work days if in stock.
7-10 work days, if goods out of stock Urgent shipment air freight.
Customized product delivery period negotiation..
Payment Term:
30% T/T in advance and 70% balance paid before shipment.
Western Union, Cash, T/T ,Bank, PayPaI
others for discussion
