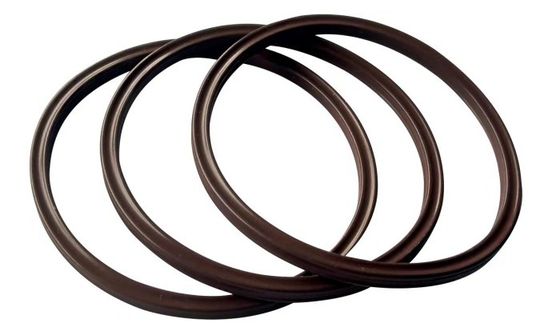

Brown Fkm 75 Material X Ring Seals AS568 Series Piston And Rod Sealing 75 Shore A
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | AS568 Series |
| Minimum Order Quantity | 100PCS |
| Price | Negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FKM | Standard Or Nonstandard | AS568 Standard |
|---|---|---|---|
| Color | Black,Brown | Style | X-Ring |
| Size | AS568 Series Size | Hardness | 75 Shore A |
| Temperature | -30~200℃ | Quality | FDA,High Quality |
| Highlight | Fkm 75 X Ring Seals |
||
Product Description
Fkm 75 Brown Material X-Rings,AS568 Series Standard,High Temperature 200℃ Rubber Square Ring, Piston and rod Sealing
1. Product Description:
The x-ring is a round rubber seal ring.
2. Product Application:
Seal: Prevent liquid or gas leakage in various mechanical equipment to ensure the sealing of the system, such as is widely used in pipeline connection, valves, pumps and other components.
Cushion: It can play a buffer role between some motion components, reduce vibration and impact.
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Specification:
Size calculation:OD=ID*2*h
AS568 standard size:
| AS0xx to AS4xx | c/s |
| AS0xx | 1.78mm |
| AS1xx | 2.62mm |
| AS2xx | 3.53mm |
| AS3xx | 5.33mm |
| AS4xx | 6.99mm |
5. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
