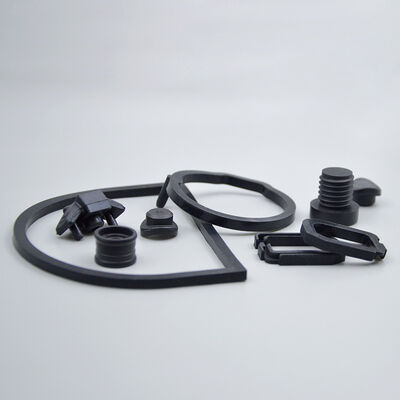

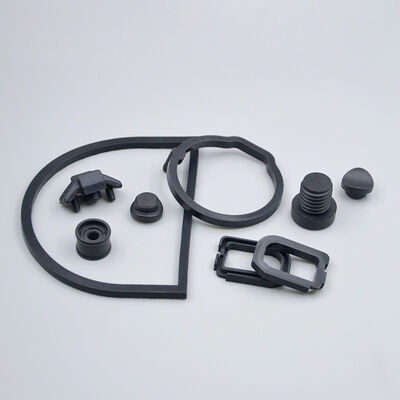

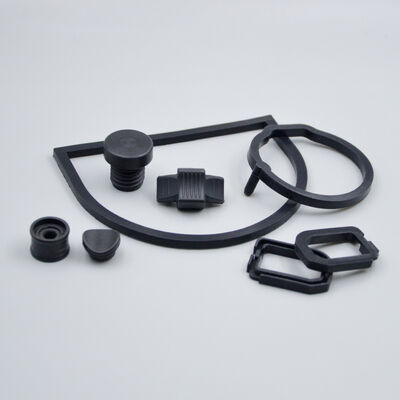

Custom Waterproof And Heat-Resistant Silicone Rubber Irregular, Y-Type Seals
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Silicone seal ring |
| Minimum Order Quantity | 100PCS |
| Price | Negotiations |
| Packaging Details | 100pc/bag |
| Delivery Time | 15-20 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000PCS/MONTH |
Product Details
| Product Name | Silicone Seal Ring | Processing Service | Mold Opening, Cutting |
|---|---|---|---|
| Material | NBR/EPDM/FKM/silicone Rubber | Shape | Custom Shape |
| Size | Custom Size | Color | Custom Color |
| Service | OEM Customization | Function | Sealing Performance |
| Highlight | custom waterproof silicone rubber seals |
||
Product Description
Custom Waterproof & Heat-Resistant Silicone Rubber Irregular, Y-Type Seals
Engineered for Extremes. Customized for You.
From precision industrial equipment to outdoor waterproof components, our custom silicone Y-shaped and irregular gaskets maintain excellent elasticity across a wide temperature range of -40°C to 260°C, offering IP68-level dust and water resistance. Whether you require special cross-sections, non-standard dimensions, or specific hardness, we can deliver a one-stop solution from mold opening to mass production.
Product Advantages
Strict Environmental Stability
- Temperature Range: -40°C to +260°C (some special formulations up to 300°C)
- Water Resistance Rating: IP68 (capable of withstanding continuous submersion)
- Weather Resistance and Anti-aging: Passes 1000-hour UV and ozone tests
Fully Customized According to Drawings
- Supports Y-type, V-type, lip-shaped, and any irregular cross-sections
- Inner diameter, outer diameter, thickness, and curvature can be replicated based on 3D drawings or samples
- Hardness range: Shore A 30° to 80°, with adjustable rebound rate
Material Safety and Compliance
- 100% virgin silicone rubber, available in FDA food-grade and UL94 V-0 flame-retardant grades
- Free of phthalates, low VOC content
- Certified by RoHS and REACH
Technical Specifications
| Project | Parameter Indicators |
|---|---|
| Material | NBR/EPDM/FKM/Silicone Rubber |
| Shape | Custom shape |
| Service | OEM Customization |
| Processing Service | Mold opening, cutting |
| Color | Custom Color |
Product Details
Y-type Structural Design: Featuring a unique dual-lip or triple-lip resilient cross-section, it provides excellent static and dynamic sealing performance, suitable for reciprocating motion shafts, end caps, and waterproof cable entry holes.
Customizable Irregular Shapes: Not restricted by standard O-ring cross-sections, it can be formed into complex geometric structures such as trapezoidal, grooved, reinforced with skeleton, and multi-hardness co-extrusion.
Surface Treatment: Default matte surface, with optional smooth molded surface, fine sandblasted finish, or self-lubricating coating to reduce installation friction.
Reinforcement Options: Aromatic fiber, glass fiber, or metal skeleton can be added according to operating conditions to enhance pressure resistance and extrusion resistance.
Typical Application Scenarios
- Waterproof sealing of battery packs in new energy vehicles
- Cable penetration sealing for outdoor LED lighting fixtures and ship deck equipment
- Y-rings for industrial valves and pneumatic components
- Sealing of food-grade high-temperature pipelines
- Waterproof gaskets for photovoltaic junction boxes and energy storage devices
