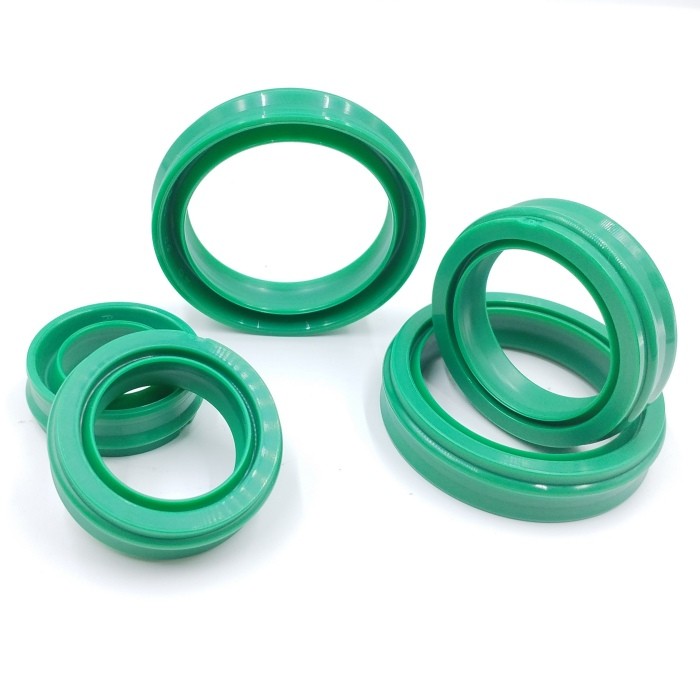

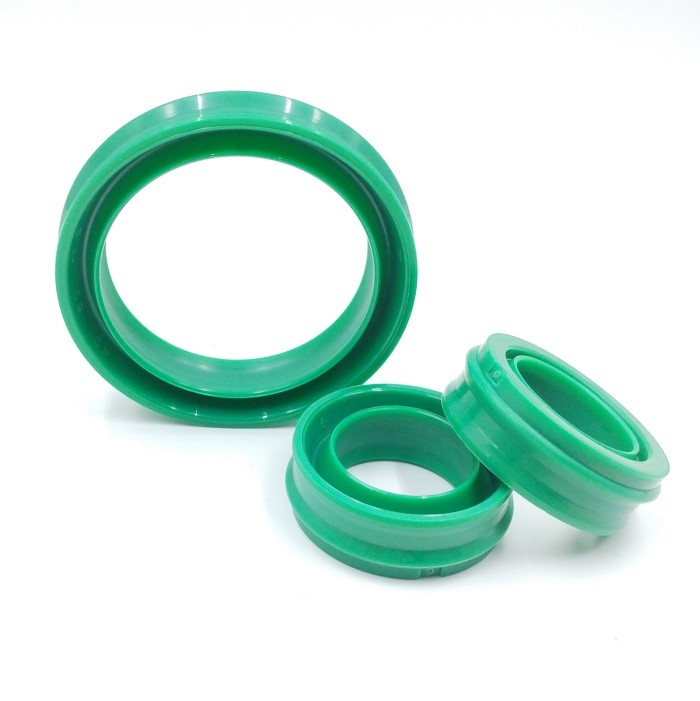

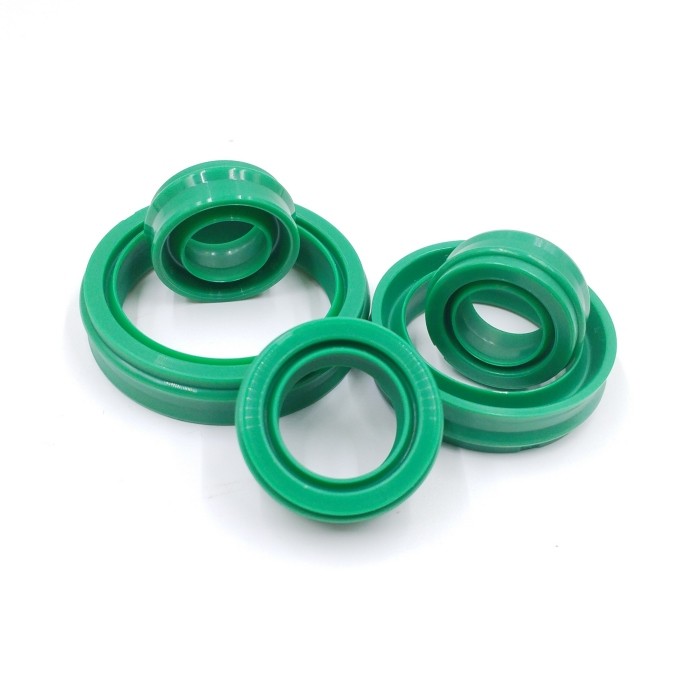

Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008

  • Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008
  • Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008
  • Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008
Place of Origin CHINA
Brand Name DZK
Certification ROHS
Model Number EU-20*30*10.7
Document DZK-Pneumatic seals.pdf
Minimum Order Quantity 100PCS
Price USD 0.40/PCS
Packaging Details 100pcs/bag
Delivery Time 7-10 days
Payment Terms L/C,T/T
Supply Ability 1000000PCS/MONTH
Product Details
Material PU Standard Or Nonstandard Parker Standard
Color Green Style EU
Size 20*30*10.7 Hardness 93 Shore A
Temperature -30~80℃ Quality FDA,High Quality
Highlight

Self Retaining Pneumatic Cylinder Seals
You can tick the products you need and communicate with us in the message board.
EU 1219 P5008 EU 1205 P5008
EU 1222 P5008 EU 1626 P5008
EU 2029 P5008 EU 2535 P5008
EU 3242 P5008 EU 4050 P5008
Leave a Message
EU 1219 P5008 EU 1205 P5008
Product Description
Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008
EU Rod Seal/Wiper Ring For Pneumatic Cylinder Piston Rods, EU 2029 P5008
Product Description
The self-retaining EU rod seal/wiper ring for pneumatic cylinder piston rods performs three functions simultaneously:
Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008 0
Product Application Specifications
Operating pressure ≤ 16 bar
Operating temperature -35 °C to +80 °C
Sliding speed ≤1 M/S
Media Compressed air, both lubricated and oil-free (after greasing for fitting)
Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008 1
Commonly Used Materials
Material Temperature Range
NBR -40 to 100 ℃
FKM -20 to 200 ℃
FFKM -20 to 320 ℃
HNBR -40 to 150 ℃
AFLAS -30 to 175 ℃
VMQ/SILICON -70 to 220 ℃
FVMQ -60 to 175 ℃
EPDM -50 to 150 ℃
CR -40 to 120 ℃
SBR -40 to 110 ℃
PU -40 to 90 ℃
PTFE -100 to 280 ℃
IIR -20 to 120 ℃
ACR -25 to 150 ℃
Product Advantages
  • Application-optimized geometry and compounds suitable for use in oiled as well as oil-free air (after initial lubrication on assembly)
  • Bi-functional element: seal and wiper
  • Robust seal profile for harshest operating conditions
  • Extreme wear resistance
  • No risk of corrosion since the combined retainer and wiper part eliminates the need for additional wire circlips
  • Long service life due to coordinated geometries of the functional lips and compound selection
  • Smooth running due to optimum lubricant-retaining sealing lip geometry
  • Excellent media resistance with suitable compound selection
Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008 2 Self Retaining Pneumatic Cylinder Seals Cylinder Rod Wiper Sealing Ring EU1205P5008 3
Frequently Asked Questions
How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
How to deliver the goods?
For small orders, we can deliver by express services such as DHL, FEDEX, UPS, TNT. For large orders, we can deliver by air or by ship.
Are you a manufacturer?
Yes. We specialize in the production of various hydraulic and pneumatic sealing products. Our quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we will offer samples free of charge but you need to pay the cost of freight.
How is the quality?
All manufacturing processes conform to the ISO-9001:2015 system, with 100% inspection before shipment.
