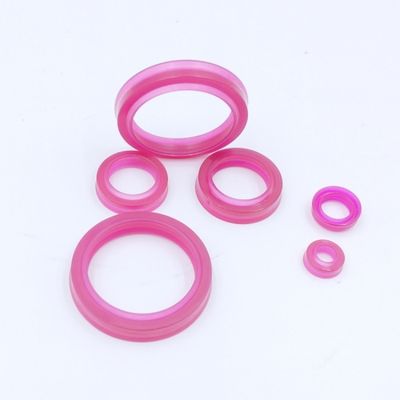

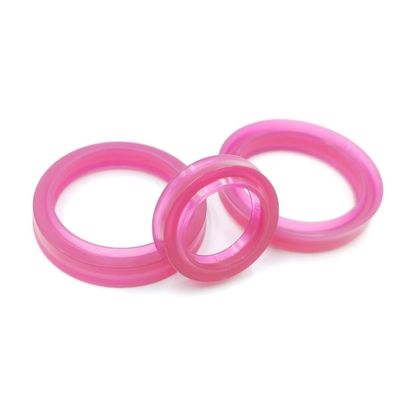

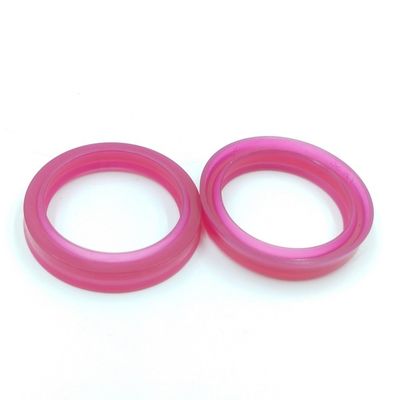

EM Rod Seal/Wiper Ring For Festo Pneumatic Cylinder Rods,EM 0407 P5010,Roland Printed Machine Cylinder Seal
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | EM-0407 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.25/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Red | Style | EU |
| Size | 4*7*2.7/2.8 | Hardness | 90 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Application | Rod Wiper Seal | ||
| Highlight | Roland Printed Machine Cylinder Seal |
||
You can tick the products you need and communicate with us in the message board.
| EM 0407 P5010 | EM 0609 P5010 | |
|---|---|---|
| EM 0811 P5010 | EM 1014 P5010 | |
| EM 1214 P5010 | EM 1620 P5010 | |
| EM 2025 P5010 | EM 2530 P5010 |
Product Description
EM Rod Seal/Wiper Ring for Festo Pneumatic Cylinder Rods
EM 0407 P5010 - Roland Printed Machine Cylinder Seal
Product Description
The EM rod seal/wiper profile combines the proven geometry of our EL profile with mini-pneumatics requirements. With considerably smaller dimensions and even lower friction values, this bi-functional element serves as both seal and wiper.
Available Compounds
- Standard: P5010, Ultrathan® (TPU) compound (≈ 90 Shore A)
- Low Temperature: P5009, Ultrathan® (TPU) compound (≈ 94 Shore A)
- High Temperature: V3839, FKM compound (≈ 90 Shore A)
Product Application & Specifications
| Operating Pressure | ≤ 16 bar |
|---|---|
| Operating Temperature | -35 °C to +80 °C |
| Sliding Speed | ≤ 1 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Commonly Used Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Advantages
- Application-optimized geometry suitable for oiled and oil-free air (after initial lubrication)
- Bi-functional element: seal and wiper in one component
- Extreme wear resistance for extended service life
- Low static and dynamic friction thanks to miniaturized design
- Smooth running due to optimum adjustment of functional lips
- Optimum lubricant-retaining sealing lip geometry
- Excellent media resistance with proper compound selection
- Short axial assembly length and radial assembly depth
- Installation in closed and undercut housings
- Low compression set maintains sealing performance
- Coordinated geometries achieve favorable friction coefficients
Product Specifications
Installation Guidelines
The self-retaining EM rod seal/wiper profile can be manually or automatically snapped into the installation housing while the piston rod is disassembled. Care must be taken to prevent sharp edges from damaging the wiping and sealing lips during assembly. Initial lubrication is essential for achieving maximum operational life.
Frequently Asked Questions
How to choose materials?
Material selection depends on the operating environment, including media type, temperature range, pressure conditions, and other application-specific factors.
How to deliver the goods?
For small orders, we use express carriers such as DHL, FEDEX, UPS, and TNT. For large orders, we deliver by air or sea freight.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for freight costs.
How is the quality?
All manufacturing processes conform to ISO-9001:2015 standards, with 100% inspection conducted before shipment to ensure product quality and reliability.
