PP PUR P5008,PP 2836,PP 3242,PP 3646,PNEUMATIC CUSHIONING SEAL,FESTO PNEUMATIC CYLINDERS BUFFER SEALING
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PP PUR P5008 |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.60/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | GREEN | Style | PP |
| Size | PP 3646 | Hardness | 90 Shore A |
| Temperature | -35~80℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston | ||
| Highlight | PP PUR P5008 |
||
You can tick the products you need and communicate with us in the message board.
| PP 0509 | PP 0610 | |
|---|---|---|
| PP 0811 | PP 0915 | |
| PP 1018 | PP 1218 | |
| PP 1422 | PP 1622 | |
| PP 1624 | PP 2028 | |
| PP 2533 | PP 3040 | |
| PP 3242 | PP 3646 | |
| PP 4050 | PP 5060 | |
| PP 5774 | PP 7087 | |
| PP 7898 | PP 3545 |
Product Description
1.Product Description:

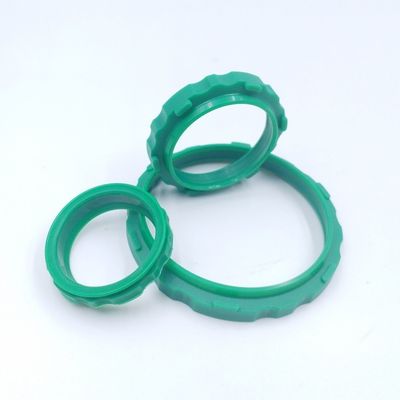

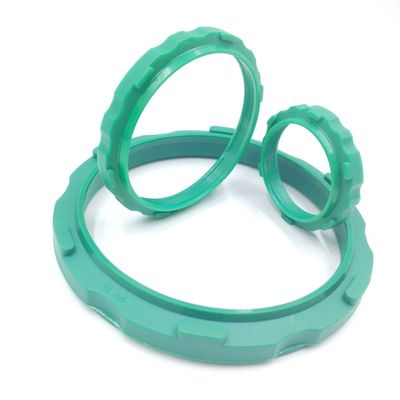

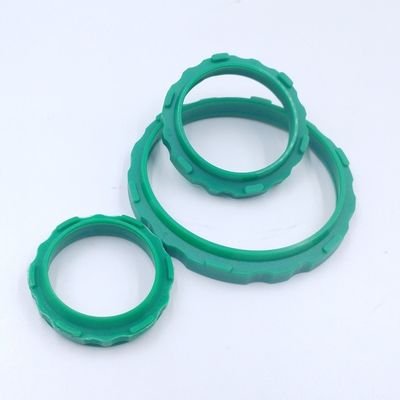

The profile PP pneumatic cushioning seal is specially designed for cushioning pistons
in pneumatic cylinders.For example, it will be used in the seal of FESTO cylinder, .
2.Product Characteristic:
• No mechanical check valves required since their function is performed by the cushioning rings.
• High cushioning consistency due to automatic centering, even in the case of misalignment of the cushioning spear and the cylinder head.
• Optimum use of design-related cushion travel.
• Robust seal profile for harshest operating conditions.
• Immediate response to reversed direction thanks to incorporated venting channels.
• Extreme wear resistance.
• Easier installation.
• Excellent media resistance in case of suitable compound selection.
• Installation in closed housings.
3.Product Application:
3.Product Application:
|
Operating pressure
|
≤ 1.6Mpa
|
|
Operating temperature
|
-30 °C to +80 °C
|
|
Sliding speed
|
≤1M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
4.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
5.Product specification:
6.Installation:
The profile PP cushioning seals are easily snapped into the groove, which should be free of all contaminants and foreign particles before installation. Care should be taken that the sealing lips are not damaged by sharp edges during installation. Initial lubrication is essential for very long service life.
7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
