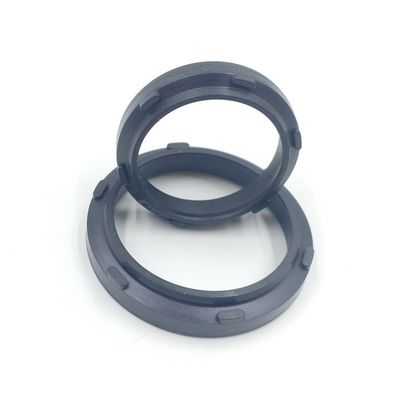

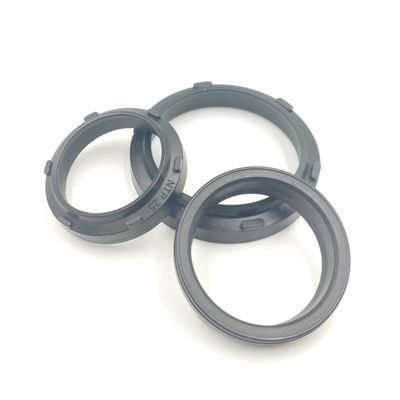

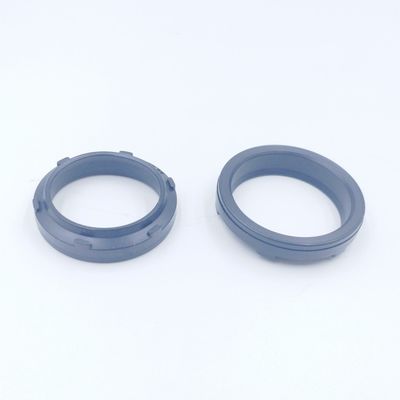

PP Type NBR Pneumatic Cushioning Seal Sc Su Si Pneumatic Cylinder Buffer Seal
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PP NBR N3589 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.10/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | NBR/FKM | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | BLACK/BROWN | Style | PP |
| Size | PP 0509 | Hardness | 85 Shore A |
| Temperature | -35~100℃ | Quality | FDA,High Quality |
| Application | Cylinder Rod | ||
| Highlight | 85 shore A Pneumatic Cushioning Seal |
||
You can tick the products you need and communicate with us in the message board.
| PP 0509 | PP 0610 | |
|---|---|---|
| PP 0811 | PP 0915 | |
| PP 1018 | PP 1218 | |
| PP 1422 | PP 1622 | |
| PP 1624 | PP 2028 | |
| PP 2533 | PP 3040 | |
| PP 3242 | PP 3646 | |
| PP 4050 | PP 5060 | |
| PP 5774 | PP 7087 | |
| PP 7898 | PP 3545 |
Product Description
PP Type NBR Pneumatic Cushioning Seal for SC/SU/SI Pneumatic Cylinder Buffer
PP NBR N3589, PP 0509, PP 1624, PP 2028, PP 2533 Pneumatic Cushioning Seal for SC/SU/SI Pneumatic Cylinders Buffer Sealing
Product Overview
The PP pneumatic cushioning seal profile is specially engineered for cushioning pistons in pneumatic cylinders. This seal is specifically designed for use in AIR TAC SC/SU/SI cylinder applications, providing reliable buffer sealing performance.
Key Features
- Eliminates need for mechanical check valves - cushioning rings perform this function
- High cushioning consistency with automatic centering, even with misaligned cushioning spear and cylinder head
- Optimal utilization of design-related cushion travel
- Robust seal profile designed for harsh operating conditions
- Immediate response to direction reversal through incorporated venting channels
- Exceptional wear resistance for extended service life
- Simplified installation process
- Excellent media resistance with proper compound selection
- Suitable for installation in closed housings
Application Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 1.6 MPa |
| Operating Temperature | -35°C to +100°C |
| Sliding Speed | ≤ 1 m/s |
| Media Compatibility | Compressed air (both lubricated and oil-free after initial greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40°C to 100°C |
| FKM | -20°C to 200°C |
| FFKM | -20°C to 320°C |
| HNBR | -40°C to 150°C |
| AFLAS | -30°C to 175°C |
| VMQ/SILICONE | -70°C to 220°C |
| FVMQ | -60°C to 175°C |
| EPDM | -50°C to 150°C |
| CR | -40°C to 120°C |
| SBR | -40°C to 110°C |
| PU | -40°C to 90°C |
| PTFE | -100°C to 280°C |
| IIR | -20°C to 120°C |
| ACR | -25°C to 150°C |
Product Specifications
Installation Guidelines
PP cushioning seals are designed for easy snap-in installation into the groove. Ensure the groove is completely clean and free from contaminants and foreign particles before installation. Take care to prevent damage to sealing lips from sharp edges during the installation process. Initial lubrication is essential for achieving maximum service life.
Frequently Asked Questions
How to choose materials?
Material selection should be based on the operating environment, including media compatibility, temperature range, pressure conditions, and other application-specific factors.
How to deliver the goods?
For small orders, we ship via express carriers including DHL, FEDEX, UPS, and TNT. For larger orders, we offer air freight and sea shipping options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for freight costs.
How is the quality?
All manufacturing processes adhere to ISO-9001:2015 standards, with 100% inspection conducted before shipment to ensure product quality and reliability.
