PTFE+NBR Hydraulic Cylinder Seals Ring Hydraulic Oil Rod Wiper Seal Parker OD Type
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | OD |
| Minimum Order Quantity | 1PCS |
| Price | USD 2.0/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR/FKM+PTFE | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | BLACK/BROWN | Style | OD/HBTS |
| Size | OD 1100 052 00171 D | Temperature | -35~200℃ |
| Quality | FDA,High Quality | Application | Hydraulic Cylinder Rod |
| Highlight | PTFE NBR Hydraulic Cylinder Seals |
||
You can tick the products you need and communicate with us in the message board.
| OD 1100 052 00171 D |
|---|
Product Description
OD 1100 052 00171,HBTS 110 125.1 6.3,Hydraulic Oil Cylinder ROD SEAL,PTFE+NBR Combined Sealing,PARKER OD TYPE SEAL
1. Product Description:

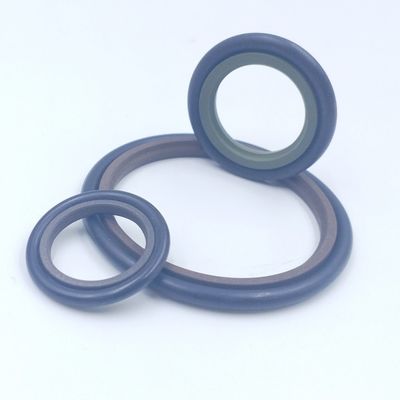

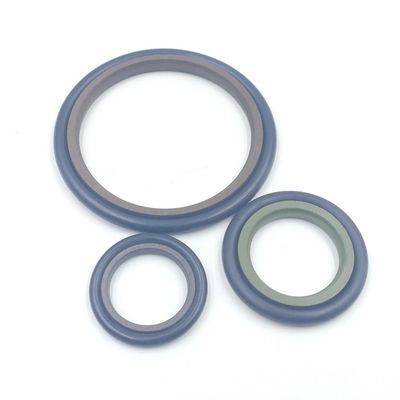

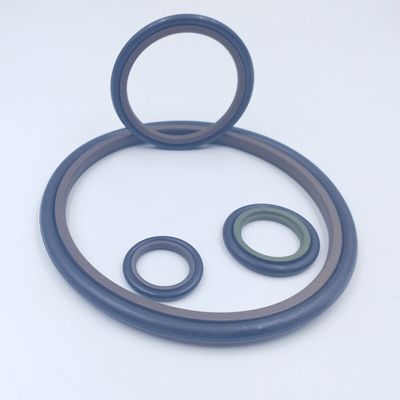

OD type seal is sealed by the PTFE rod and O-ring. The o-ring is outside the PTFE,used for hydraulic oil cylinder rod.
2. Product Characteristic:
● Low friction resistance: no crawling phenomenon, good performance when lubrication and no lubrication, can ensure that the equipment is running smoothly.
● Good sealing effects: Movement and static sealing effects are quite good, without stickiness, which can effectively prevent leakage. Under low rubbing resistance, the leakage can also be controlled to excellent conditions.
● High pressure resistance: strong working conditions and high pressure can be afforded, such as widely used in some high -pressure hydraulic systems.
● The groove structure is simple: easy to install and maintain, save installation space.
● Long service life: good abrasion loss performance, coupled with good material characteristics to make it have a longer service life.
3. Product Application:
|
Operating pressure
|
≤ 60Mpa
|
|
Operating temperature
|
-35 °C to +200 °C
|
|
Sliding speed
|
≤4M/S |
| Media | Hydraulic oil |
4. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
5. Product specification:
6. Installation:
The installation method of OD type seal as follows:
1. Preparation before installation: Wash and oil all the sealing substrates, sealing and installation tools of OD type seal.
2. Install the rubber ring: put the rubber ring of Steter into the groove, not to be distorted.
3. Install the PTFE sealing ring: compressing the PTFE ring of Steter into the shape of the waist, and not to form a pointed bending, and then put the compressed PTFE sealing ring into the groove, and gently flatten it by hand.
4. Install the restoration of the heart shaft: push the restoration's heart shaft to the sealing part, and gently turn the heart shaft. Place it for 1 minute to remove the axis and install it.
7. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
