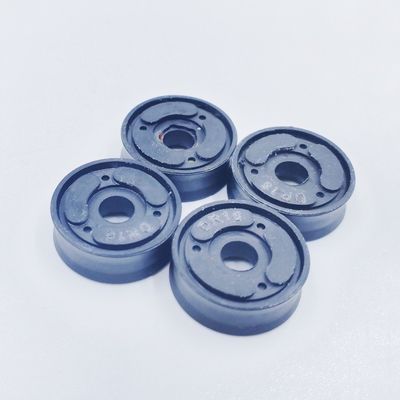

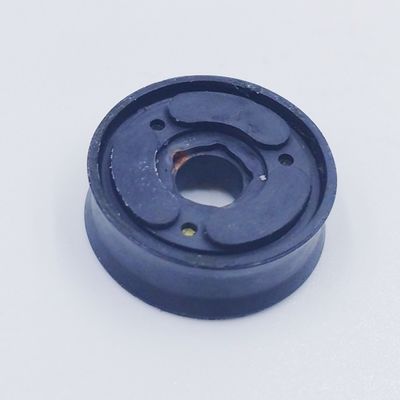

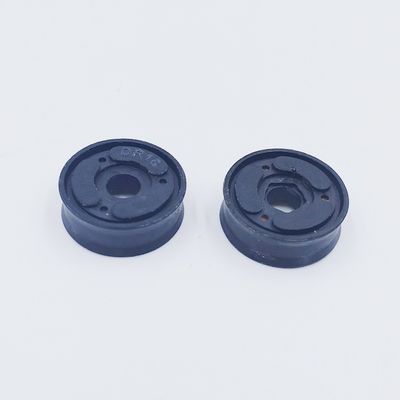

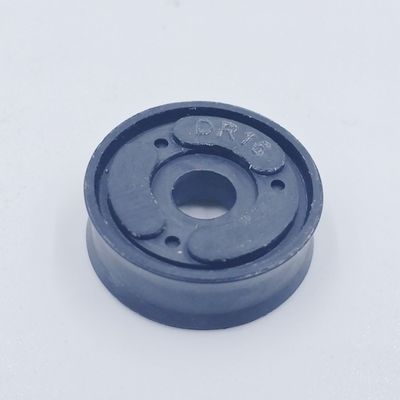

DR 1604 Z4004,MAGNETIC PISTON WITH INTEGRATED CUSHIONING DR,FESTO DOUBLE-ACTING PNEUMATIC CYLINDER PISTON SEAL
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | DR |
| Minimum Order Quantity | 100PCS |
| Price | USD 3.00/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | BLACK | Style | DR |
| Size | DR 1604 | Temperature | -30~80℃ |
| Quality | FDA,High Quality | Application | PNEUMATIC CYLINDER PISTON |
| Hardness | HS80 | ||
| Highlight | FESTO PNEUMATIC CYLINDER PISTON SEAL |
||
You can tick the products you need and communicate with us in the message board.
| DR 1604 Z4004 |
|---|
Product Description
1.Product Description:
The double-acting pneumatic complete piston DR with inductive position interrogation and integrated cushioning is specifically designed to meet the requirements of modern pneumatic cylinders. The extremely slim complete piston is suitable for use in a wide range of different cylinder types and with various sensors.The combination of all functionalities – sealing, guiding, cushioning, interrogating – in a single component assures easy assembly and, in addition, offers handling and logistic cost benefits.
2.Product Characteristic:
Due to application-optimized geometry and compounds suitable for use in
oiled as well as in oil-free air (after initial lubrication on assembly).
• Use of different types of sensors (inductive) is possible.
• Cushioning buffers on the piston´s front faces with integrated ventilation ducts
provide for mechanical cushioning of the cylinders.
• Multi-functional element: seal, guiding and cushioning element.
• Immediate response (full pressure load) thanks to incorporated venting channels.
• Good wear resistance.
• Ideal corrosion protection thanks to complete elastomer covering.
• Smooth running due to optimum adjustment of the functional lips.
• Easy attachment to the piston rod with out additional sealing elements.
• Easy installation due to integrated static sealing function.
• Excellent media resistance in case of suitable compound selection.
• Low assembly height of the complete piston enables short cylinder designs.
• Versatile complete piston for nearly all cylinder designs.
3.Product Application:
|
Operating pressure
|
≤ 1Mpa
|
|
Operating temperature
|
-35 °C to +80 °C
|
| Sliding Speed |
≤ 1 m/s
|
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
4.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
5.Product specification:
6.Installation:
The magnetic piston DR is connected to the piston rod by threading or riveting. The
threaded connection should be secured against loosening. For operation in dry or oil
free air, a long-term lubricant must be used for the piston and cylinder.
7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
