EU Rod Seal/Wiper Ring For SC Pneumatic Cylinder Piston Rods,EU 1219 P5008,EU12*19*10.7
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | EU-12*19*10.7 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.20/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | EU |
| Size | 12*19*10.7 | Hardness | 93 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Highlight | EU Rod Seal |
||
You can tick the products you need and communicate with us in the message board.
| EU 1219 P5008 | EU 1205 P5008 | |
|---|---|---|
| EU 1222 P5008 | EU 1626 P5008 | |
| EU 2029 P5008 | EU 2535 P5008 | |
| EU 3242 P5008 | EU 4050 P5008 |
Product Description

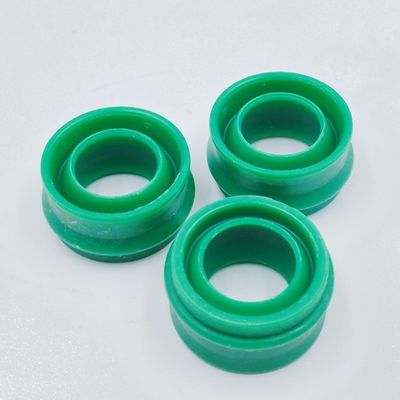

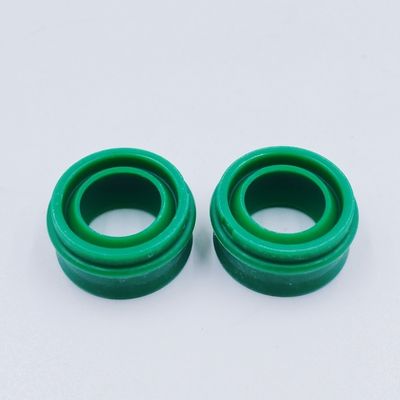

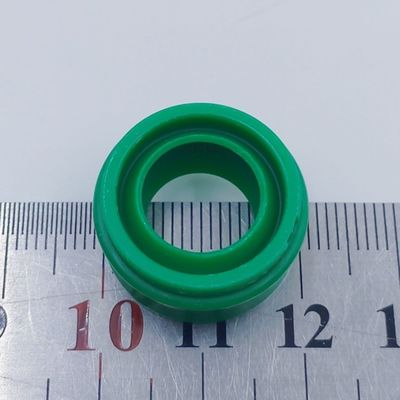

EU Rod Seal/Wiper Ring for SC Pneumatic Cylinder Piston Rods
EU 1219 P5008, EU12×19×10.7 - Self-retaining rod seal and wiper ring that performs three functions simultaneously for pneumatic cylinder applications.
Product Specifications
| Operating Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -35 °C to +80 °C |
| Sliding Speed | ≤ 1 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Advantages
- Application-optimized geometry and compounds suitable for both oiled and oil-free compressed air (after initial lubrication on assembly)
- Bi-functional element combining sealing and wiping functions
- Robust seal profile designed for harsh operating conditions
- Exceptional wear resistance for extended service life
- Eliminates corrosion risk by combining retainer and wiper functions, removing need for additional wire circlips
- Coordinated geometries of functional lips and compound selection ensure long service life
- Smooth operation through optimal lubricant-retaining sealing lip geometry
- Excellent media resistance with proper compound selection
Frequently Asked Questions
How to choose materials?
Material selection depends on application environment including medium, temperature, pressure, and other operating conditions.
How to deliver the goods?
Small orders are delivered via express carriers (DHL, FEDEX, UPS, TNT). Large orders are shipped by air or sea freight.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide free samples but customers must pay the freight costs.
How is the quality?
All manufacturing processes conform to ISO-9001:2015 standards with 100% inspection before shipment to ensure product quality and reliability.
