EU Rod Seal/Wiper Ring For SE Pneumatic Cylinder Piston Rods,EU 1626 P5008,EU16 26 10.7
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | EU-16*26*10.7 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.25/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | EU |
| Size | 16*26*10.7 | Hardness | 93 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Highlight | EU16 26 10.7 Rod Seal |
||
You can tick the products you need and communicate with us in the message board.
| EU 1219 P5008 | EU 1205 P5008 | |
|---|---|---|
| EU 1222 P5008 | EU 1626 P5008 | |
| EU 2029 P5008 | EU 2535 P5008 | |
| EU 3242 P5008 | EU 4050 P5008 |
Product Description

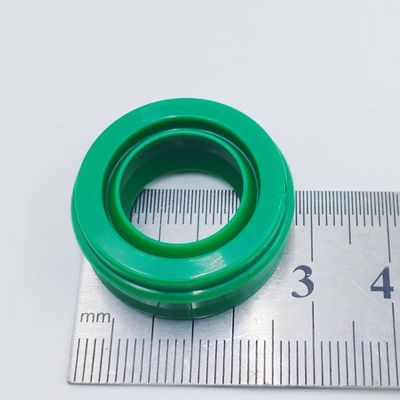

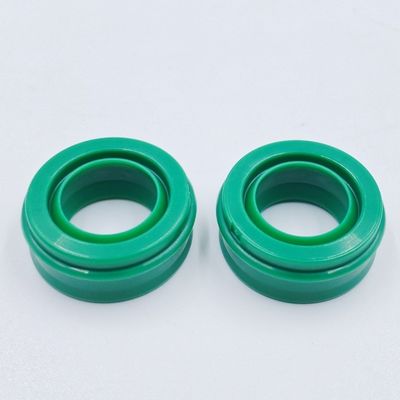

EU Rod Seal/Wiper Ring for SE Pneumatic Cylinder Piston Rods
EU 1626 P5008, EU16 26 10.7 - A self-retaining rod seal and wiper ring designed for pneumatic cylinder piston rods that performs three critical functions simultaneously.
Product Specifications
| Operating Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -35 °C to +80 °C |
| Sliding Speed | ≤ 1 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Key Advantages
- Application-optimized geometry and compounds suitable for use in oiled and oil-free air (after initial lubrication on assembly)
- Bi-functional element combining seal and wiper functions
- Robust seal profile designed for harsh operating conditions
- Exceptional wear resistance for extended service life
- Eliminates corrosion risk by combining retainer and wiper functions, removing need for additional wire circlips
- Long service life through coordinated geometries of functional lips and optimal compound selection
- Smooth operation with optimum lubricant-retaining sealing lip geometry
- Excellent media resistance with proper compound selection
Frequently Asked Questions
How to choose materials?
Material selection depends on your specific operating environment, including media type, temperature range, pressure conditions, and other application requirements.
How to deliver the goods?
For small orders, we ship via express carriers including DHL, FEDEX, UPS, and TNT. For larger orders, we offer air freight or sea shipping options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for shipping costs.
How is the quality?
All manufacturing processes adhere to ISO-9001:2015 quality standards, with 100% inspection conducted before shipment to ensure product reliability and performance.
