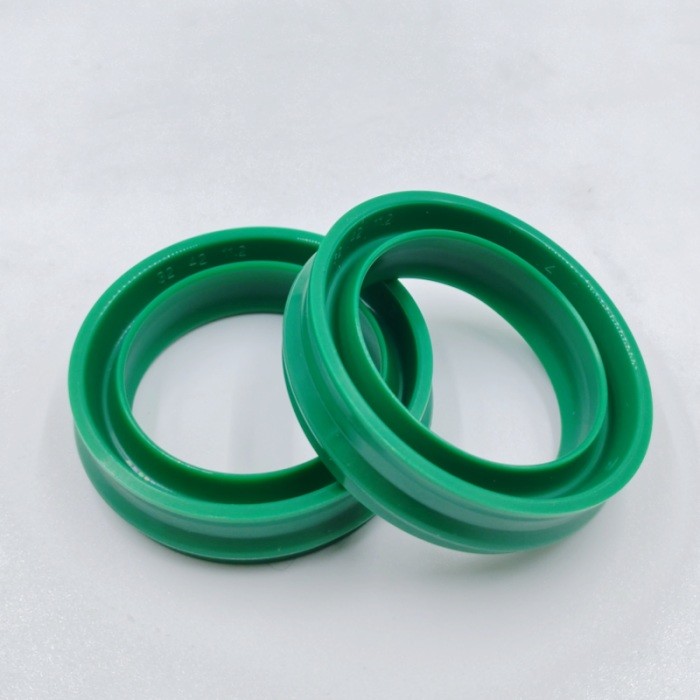

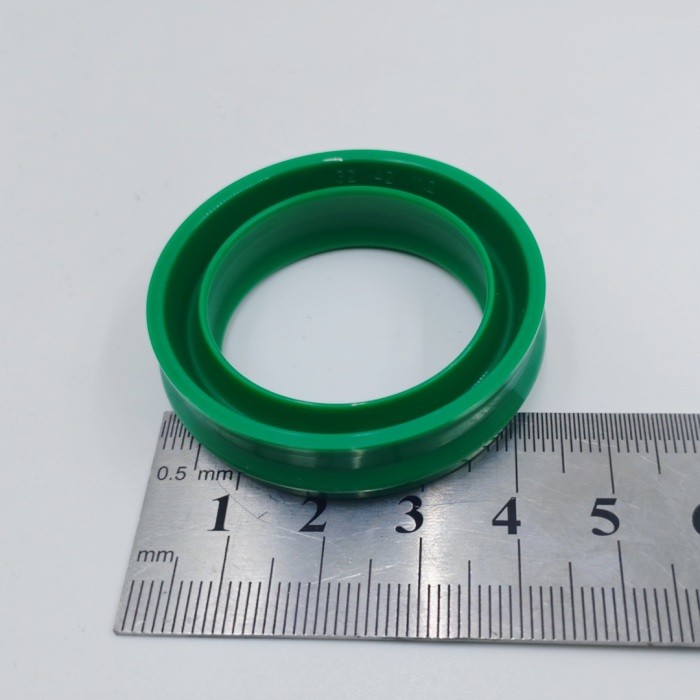

PU Material Pneumatic Cylinder Rod Seals self retaining EU 3242 P5008 Eu32x42x11.2
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | EU-32*42*11.2 |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.50/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | EU |
| Size | 32*42*11.2 | Hardness | 93 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Highlight | Cylinder Rod Seals Self Retaining |
||
You can tick the products you need and communicate with us in the message board.
| EU 1219 P5008 | EU 1205 P5008 | |
|---|---|---|
| EU 1222 P5008 | EU 1626 P5008 | |
| EU 2029 P5008 | EU 2535 P5008 | |
| EU 3242 P5008 | EU 4050 P5008 |
Product Description
FESTO PNEUMATIC CYLINDER SEAL,EU ROD SEAL/WIPER RING FOR SU PNEUMATIC CYLINDER RODS,EU 3242 P5008,EU32 42 11.2
1. Product Description:
The self-retaining EU rod seal/wiper ring for pneumatic cylinder piston rods performs
three functions simultaneously:
2. Product Application:
|
Operating pressure
|
≤ 16 bar
|
|
Operating temperature
|
-35 °C to +80 °C
|
|
Sliding speed
|
≤1M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Adantage:
• Due to application-optimized geometryand compounds suitable for use in
oiled as well as in oil-free air (after initial lubrication on assembly).
• Bi-functional element: seal and wiper.
• Robust seal profile for harshest operating conditions.
• Extreme wear resistance.
• No risk of corrosion since the combined retainer and wiper part eliminates the
need for additional wire circlips.
• Long service life due to coordinated geometries of the functional lips and compound selection.
• Smooth running due to optimum lubricant-retaining sealing lip geometry.
• Excellent media resistance in case of suitable compound selection.
5. INSTALLATION:
The profile EU rod seal wiper is pushed into the housing with a circlip recess conform
ing to DIN 7993 (type B) and retained by the easy-to-snap in retainer ridge.
During assembly, care should be taken that neither the wiper nor the sealing lip be
damaged by being pushed over any sharp edges.
6. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
