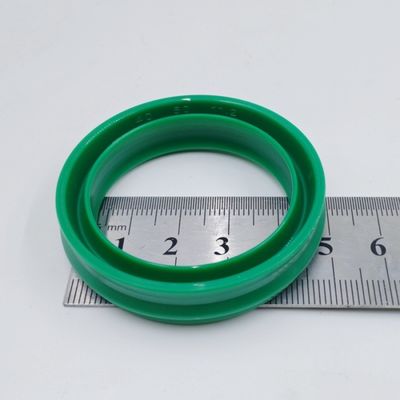

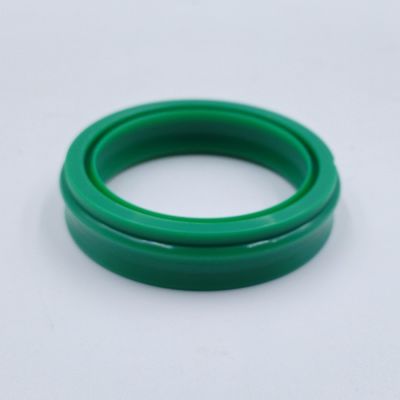

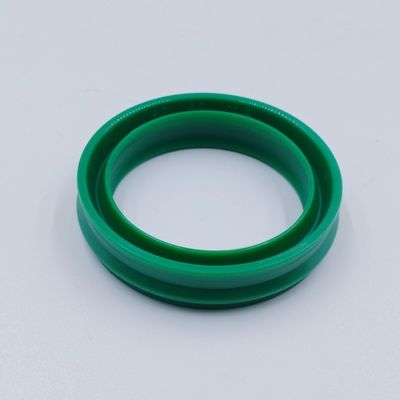

Self Retaining Festo Rod Seal Wiper Ring For Pneumatic Cylinder Rods EU 40x50x11.2
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | EU-40*50*11.2 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.70/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | EU |
| Size | 40*50*11.2 | Hardness | 94 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Highlight | Self Retaining EU Rod Seal |
||
You can tick the products you need and communicate with us in the message board.
| EU 1219 P5008 | EU 1205 P5008 | |
|---|---|---|
| EU 1222 P5008 | EU 1626 P5008 | |
| EU 2029 P5008 | EU 2535 P5008 | |
| EU 3242 P5008 | EU 4050 P5008 |
Product Description
Self Retaining Festo Rod Seal Wiper Ring For Pneumatic Cylinder Rods EU 40x50x11.2
Product Overview
The self-retaining EU rod seal/wiper ring for pneumatic cylinder piston rods performs three functions simultaneously: sealing, wiping, and retention.
Technical Specifications
| Operating Pressure | ≤ 16 bar |
|---|---|
| Operating Temperature | -35 °C to +80 °C |
| Sliding Speed | ≤ 1 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Standard Compounds
Standard: P5008, Ultrathan® (TPU) Compound (≈ 94 Shore A)
For Low Temperatures: P5009, Ultrathan® (TPU) Compound (≈ 94 Shore A)
For Low Temperatures: P5009, Ultrathan® (TPU) Compound (≈ 94 Shore A)
Key Advantages
- Application-optimized geometry suitable for use in oiled and oil-free air (after initial lubrication on assembly)
- Bi-functional element: seal and wiper in one component
- Robust seal profile for harshest operating conditions
- Extreme wear resistance for extended service life
- No risk of corrosion - combined retainer and wiper part eliminates need for additional wire circlips
- Long service life due to coordinated geometries of functional lips and compound selection
- Smooth running due to optimum lubricant-retaining sealing lip geometry
- Excellent media resistance with proper compound selection
Installation Guidelines
The profile EU rod seal wiper is pushed into the housing with a circlip recess conforming to DIN 7993 (type B) and retained by the easy-to-snap in retainer ridge. During assembly, care should be taken that neither the wiper nor the sealing lip be damaged by being pushed over any sharp edges.
Frequently Asked Questions
How to choose materials?
Material selection depends on the operating environment, including medium, temperature, pressure, and other specific conditions.
Material selection depends on the operating environment, including medium, temperature, pressure, and other specific conditions.
How to deliver the goods?
For small orders: delivered by express carriers (DHL, FEDEX, UPS, TNT). For large orders: delivered by air or sea freight.
For small orders: delivered by express carriers (DHL, FEDEX, UPS, TNT). For large orders: delivered by air or sea freight.
Are you a manufacturer?
Yes. We specialize in the production of various hydraulic and pneumatic sealing products. Our quality system is certified to ISO 9001:2015, and materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Yes. We specialize in the production of various hydraulic and pneumatic sealing products. Our quality system is certified to ISO 9001:2015, and materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers need to pay the freight cost.
Yes, we provide samples free of charge, but customers need to pay the freight cost.
How is the quality?
All manufacturing processes conform to ISO-9001:2015 system with 100% inspection before shipment.
All manufacturing processes conform to ISO-9001:2015 system with 100% inspection before shipment.
