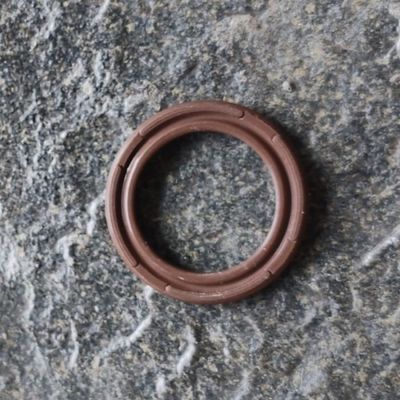

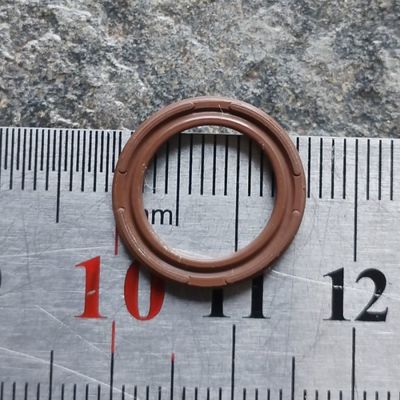

High Temp Resistant Pneumatic Cylinder Seals FKM Fluoride PSD Sealing 16x11.4x1.6
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PSD-16 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.10/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | FKM/NBR | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK/BROWN | Style | PSD/OPA |
| Size | 16*11.4*1.6 | Hardness | 80 Shore A |
| Temperature | -20~200℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston | ||
| Highlight | High Temp Resistant Pneumatic Cylinder Seals |
||
You can tick the products you need and communicate with us in the message board.
| PSD-16 | PSD-12 | |
|---|---|---|
| PSD-10 | PSD-20 | |
| PSD-25 | PSD-32 | |
| PSD-40 | PSD-50 | |
| PSD-63 | PSD-80 | |
| PSD-100 | PSD-125 |
Product Description
High Temperature Resistant FKM Pneumatic Cylinder Piston Seals
PSD Type Sealing for Pneumatic Cylinders - SAKAGAMI PSD 16×11.4×1.6
Product Overview
PSD seals are specifically designed for pneumatic piston applications as two-way, double-acting piston seals. They prevent metallic contact between the piston and cylinder while ensuring smooth operation through optimal lubricant-retaining sealing lip geometry.
Key Features
- Compact Cross-Section Design: Small cross-sectional size adapts to space-limited installation environments, ideal for precision instruments and compact pneumatic tools
- Superior Sealing Performance: Effectively prevents gas or liquid leakage, maintaining system stability and ensuring proper equipment operation in both static and dynamic sealing conditions
- Excellent Wear Resistance: Withstands prolonged friction without damage, ensuring extended service life and reduced maintenance costs in frequently operating systems
- High Temperature Resistance: Maintains stable performance across wide temperature ranges, preserving sealing function and physical properties in both high and low temperature environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -30°C to +200°C |
| Sliding Speed | ≤ 0.5 m/s |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100℃ |
| FKM | -30 to 200℃ |
| FFKM | -20 to 320℃ |
| HNBR | -40 to 150℃ |
| AFLAS | -30 to 175℃ |
| VMQ/SILICON | -70 to 220℃ |
| FVMQ | -60 to 175℃ |
| EPDM | -50 to 150℃ |
| CR | -40 to 120℃ |
| SBR | -40 to 110℃ |
| PU | -40 to 90℃ |
| PTFE | -100 to 280℃ |
| IIR | -20 to 120℃ |
| ACR | -25 to 150℃ |
Product Specifications
| ITEM | OD | ID | h | H |
|---|---|---|---|---|
| PSD-012 | 12 | 7.4 | 1.6 | 1.8 |
| PSD-016 | 16 | 11.4 | 1.6 | 1.8 |
| PSD-020 | 20 | 14 | 2.2 | 2.4 |
| PSD-025 | 25 | 17 | 3.0 | 3.2 |
| PSD-030 | 30 | 22 | 3.0 | 3.2 |
| PSD-032 | 32 | 24 | 3.0 | 3.2 |
| PSD-040 | 40 | 32 | 3.0 | 3.2 |
| PSD-050 | 50 | 40 | 3.8 | 4.0 |
| PSD-063 | 63 | 53 | 3.8 | 4.0 |
| PSD-080 | 80 | 65 | 5.6 | 6.0 |
| PSD-100 | 100 | 85 | 5.6 | 6.0 |
| PSD-125 | 125 | 110 | 5.6 | 6.0 |
Installation Guidelines
PSD pneumatic cylinder seals can be easily mounted by pulling them over the one-piece piston. Care should be taken to ensure all edges are properly chamfered to prevent seal damage during installation.
Frequently Asked Questions
How to choose the right material?
Material selection depends on the specific application environment, including media compatibility, temperature range, pressure conditions, and other operational factors.
What are the delivery options?
For small orders, we use express carriers including DHL, FedEx, UPS, and TNT. For larger orders, we offer air freight and sea freight options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept custom orders and OEM production.
Do you provide samples? Are they free?
Yes, we provide samples free of charge, but customers are responsible for covering the freight costs.
How is the quality assurance?
All manufacturing processes adhere to ISO-9001:2015 standards, with 100% inspection conducted before shipment to ensure product quality and reliability.
