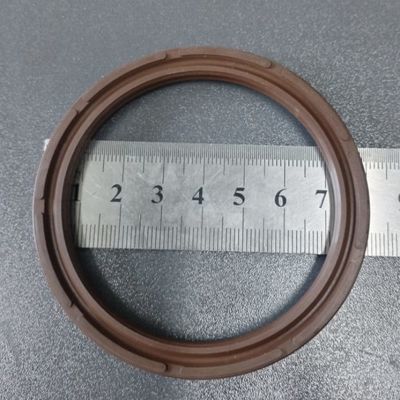

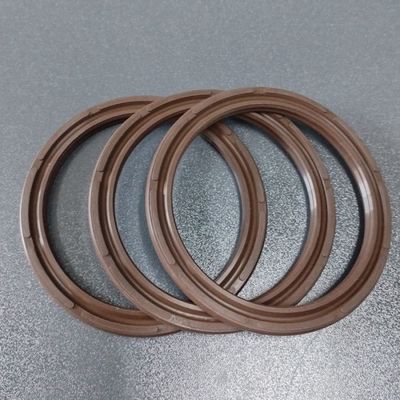

HIGH TEMPERATURE RESISTANT SEALING, DOUBLE-ACTING PISTONS PNEUMATIC CYLINDER,FKM VITON PSD OPA 80 65 5.6,SAKAGAMI PSD
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PSD-80 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 1.50/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | FKM/NBR | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK/BROWN | Style | PSD/OPA |
| Size | 80*65*5.6 | Hardness | 80 Shore A |
| Temperature | -20~200℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston | ||
| Highlight | FKM VITON PNEUMATIC CYLINDER |
||
You can tick the products you need and communicate with us in the message board.
| PSD-16 | PSD-12 | |
|---|---|---|
| PSD-10 | PSD-20 | |
| PSD-25 | PSD-32 | |
| PSD-40 | PSD-50 | |
| PSD-63 | PSD-80 | |
| PSD-100 | PSD-125 |
Product Description
High Temperature Resistant Sealing, Double-Acting Pistons Pneumatic Cylinder
PSD sealing rings are specifically designed for pneumatic piston applications, featuring two-way sealing for double-acting pistons. These seals prevent metallic contact between the piston and cylinder, ensuring smooth operation through optimal lubricant-retaining sealing lip geometry.
Product Characteristics
- Compact Cross-Section Design: Features a small cross-sectional size ideal for space-constrained installations, particularly suitable for precision instruments and compact pneumatic tools where minimal space is available.
- Superior Sealing Performance: Effectively prevents gas or liquid leakage, maintaining system stability and ensuring reliable equipment operation in both static and dynamic sealing conditions.
- Excellent Wear Resistance: Withstands prolonged friction during operation, providing extended service life and reducing maintenance frequency and costs in high-cycle applications.
- High Temperature Resistance: Maintains stable performance across wide temperature ranges, preserving sealing functionality and physical properties in both high and low temperature environments.
Application Specifications
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -30 °C to +200 °C |
| Sliding Speed | ≤ 0.5 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Commonly Used Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -30 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Specifications
| ITEM | OD | ID | h | H |
|---|---|---|---|---|
| PSD-012 | 12 | 7.4 | 1.6 | 1.8 |
| PSD-016 | 16 | 11.4 | 1.6 | 1.8 |
| PSD-020 | 20 | 14 | 2.2 | 2.4 |
| PSD-025 | 25 | 17 | 3.0 | 3.2 |
| PSD-030 | 30 | 22 | 3.0 | 3.2 |
| PSD-032 | 32 | 24 | 3.0 | 3.2 |
| PSD-040 | 40 | 32 | 3.0 | 3.2 |
| PSD-050 | 50 | 40 | 3.8 | 4.0 |
| PSD-063 | 63 | 53 | 3.8 | 4.0 |
| PSD-080 | 80 | 65 | 5.6 | 6.0 |
| PSD-100 | 100 | 85 | 5.6 | 6.0 |
| PSD-125 | 125 | 110 | 5.6 | 6.0 |
Installation Guidelines
PSD pneumatic cylinder seals can be easily mounted by pulling them over the one-piece piston. Care should be taken to ensure all edges are properly chamfered to prevent seal damage during installation.
Frequently Asked Questions
How to choose materials?
Material selection should be based on the specific application environment, including media compatibility, temperature range, pressure requirements, and other operational conditions.
How to deliver the goods?
For small orders, we deliver via express carriers such as DHL, FEDEX, UPS, TNT. For larger orders, we offer delivery by air or sea freight.
Are you a manufacturer?
Yes, we specialize in the production of various hydraulic and pneumatic sealing products. Our quality system is certified to ISO 9001:2015, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for covering the freight costs.
How is the quality?
All manufacturing processes conform to the ISO-9001:2015 quality system, with 100% inspection conducted before shipment to ensure product reliability and performance.
