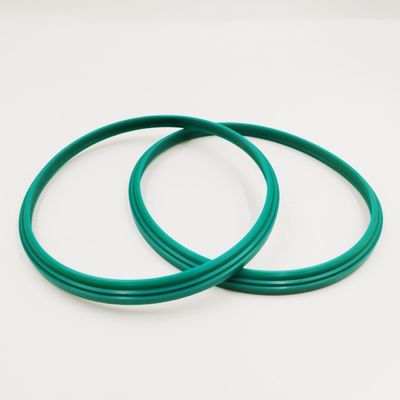

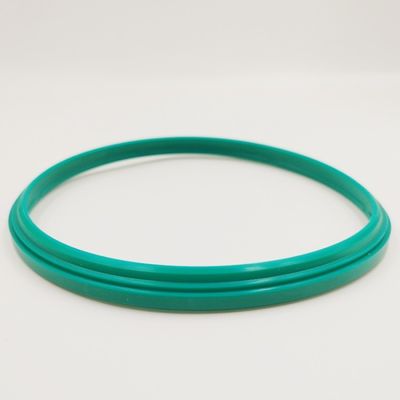

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | A1-100*108*4/7 |
| Minimum Order Quantity | 100PCS |
| Price | USD 1.0/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | A1 |
| Size | 100*108*4/7 | Hardness | 93 Shore A |
| Temperature | -30~80℃ | Quality | FDA,High Quality |
| Application | Rod Wiper Seal | ||
| Highlight | A1 Hydraulic Cylinder Dust Seal |
||
You can tick the products you need and communicate with us in the message board.
| A1 5040 P5008 | |
|---|---|
| A1 010 P5008 |
Product Description
A1 100 108 4/7 Two Steps Sealing A1 010 P5008,Hydraulic Cylinder Dust Sealing A1,100mm Rod Seal
1. Product Description:
GHP/A1 wiper is a sealing element which usd in hydraulic applications to obstruct all kinds of negative foreignparticles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.
Standardized with the materials of high performance PU 93 shore A.
2. Product Application:
|
Operating pressure
|
≤ 140 bar
|
|
Operating temperature
|
-35 °C to +100 °C
|
|
Sliding speed
|
≤2M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Adantage:
a. High abrasion resistance.
b. Widely applicable.
c. Easy installation.
5. Product Specification:
6. Installation:
The self-retaining rod seal/wiper profile A1 is manually or automatically snapped into
the installation housing while the piston rod is disassembled. Care is to be taken to
prevent sharp edges from damaging the wiping and sealing lips during assembly.
Initial lubrication is the prerequisite for very long operational life.
7. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
