SDA32 PNEUMATIC CYLINDER PISTON SEAL HIGH TEMPERATURE RESISTANT SEALING, DOUBLE-ACTING FKM VITON,PSD32 24 3
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PSD-32 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.22/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | FKM/NBR | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK/BROWN | Style | PSD/OPA |
| Size | 32*24*3 | Hardness | 80 Shore A |
| Temperature | -20~200℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston | ||
| Highlight | PSD32 PNEUMATIC CYLINDER PISTON SEAL |
||
You can tick the products you need and communicate with us in the message board.
| PSD-16 | PSD-12 | |
|---|---|---|
| PSD-10 | PSD-20 | |
| PSD-25 | PSD-32 | |
| PSD-40 | PSD-50 | |
| PSD-63 | PSD-80 | |
| PSD-100 | PSD-125 |
Product Description

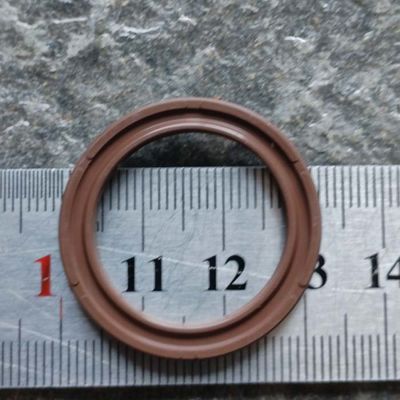

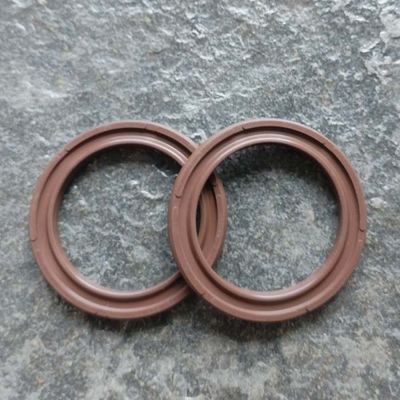

SDA32 Pneumatic Cylinder Piston Seal
High temperature resistant sealing, double-acting FKM Viton, PSD32 24 3
Product Overview
PSD sealing rings are specifically designed for pneumatic piston applications. These double-acting seals prevent metallic contact between the piston and cylinder while ensuring smooth operation through optimal lubricant-retaining sealing lip geometry.
Key Features
- Compact Design: Small cross-section size enables installation in space-limited environments, ideal for precision instruments and compact pneumatic tools
- Superior Sealing: Effective prevention of gas or liquid leakage maintains system stability and ensures reliable equipment operation in both static and dynamic sealing conditions
- Enhanced Durability: Excellent abrasion resistance withstands prolonged friction, extending service life and reducing maintenance costs in frequently operating systems
- Temperature Resilience: Maintains stable performance across wide temperature ranges, preserving sealing functionality and physical properties in both high and low temperature environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -30 °C to +200 °C |
| Sliding Speed | ≤ 0.5 m/s |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Material Options
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -30 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICONE | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Specifications
| ITEM | OD | ID | h | H |
|---|---|---|---|---|
| PSD-012 | 12 | 7.4 | 1.6 | 1.8 |
| PSD-016 | 16 | 11.4 | 1.6 | 1.8 |
| PSD-020 | 20 | 14 | 2.2 | 2.4 |
| PSD-025 | 25 | 17 | 3.0 | 3.2 |
| PSD-030 | 30 | 22 | 3.0 | 3.2 |
| PSD-032 | 32 | 24 | 3.0 | 3.2 |
| PSD-040 | 40 | 32 | 3.0 | 3.2 |
| PSD-050 | 50 | 40 | 3.8 | 4.0 |
| PSD-063 | 63 | 53 | 3.8 | 4.0 |
| PSD-080 | 80 | 65 | 5.6 | 6.0 |
| PSD-100 | 100 | 85 | 5.6 | 6.0 |
| PSD-125 | 125 | 110 | 5.6 | 6.0 |
Installation Guidelines
PSD pneumatic cylinder seals can be easily mounted by pulling them over the one-piece piston. Ensure all edges are properly chamfered to prevent seal damage during installation.
Frequently Asked Questions
How to choose materials?
Material selection depends on the operating environment, including media compatibility, temperature range, pressure conditions, and other application-specific requirements.
How to deliver the goods?
For small orders, we use express carriers including DHL, FedEx, UPS, and TNT. For larger orders, we offer air freight and sea freight options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, though customers are responsible for freight costs.
How is the quality?
All manufacturing processes adhere to ISO-9001:2015 standards, with 100% inspection conducted before shipment to ensure product quality and reliability.
