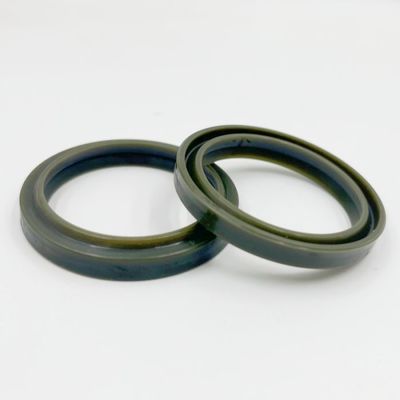

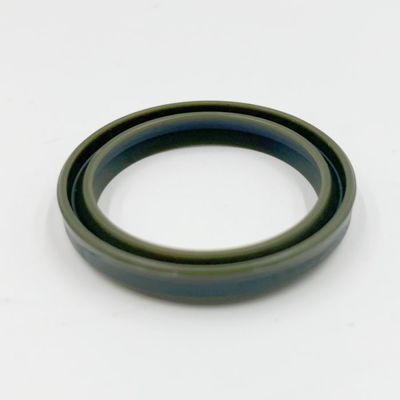

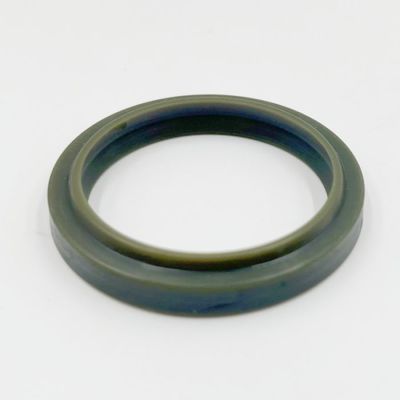

PU Forklift Hydraulic Cylinder Seals Rod Wiper Ring DHS 22 30 4.5/6 Dust Oil Seals
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | DHS-22*30*4.5/6 |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.15/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | BLUE | Style | DH |
| Size | 22*30*4.5/6 | Hardness | 94 Shore A |
| Temperature | -30~100℃ | Quality | FDA,High Quality |
| Application | Rod Wiper Seal | ||
| Highlight | PU Forklift Hydraulic Cylinder Seals |
||
You can tick the products you need and communicate with us in the message board.
| DH-12 | |
|---|---|
| DH-14 | |
| DH-16 | |
| DH-18 | |
| DH-20 | |
| DH-22.4 | |
| DH-22 | |
| DH-25 | |
| DH-28 | |
| DH-30 | |
| DH-32 | |
| DH-35 | |
| DH-36 | |
| DH-38 | |
| DH-40 |
Product Description
DHS Rod Seal/Wiper Ring For HYDRAULIC Cylinder Rods,DHS 22 30 4.5/6,Forklift Hydraulic Cylinder Sealing,Dust Oil Seal
1. Product Description:
The profile design of the profile DHS rod seal/wiper combines the profile geometry of our tried and proven profile AY with the requirements of Hydraulic cylinder.
Compounds:
Standard: P5010, Ultrathan® (TPU) compound (≈ 90 Shore A).
For low temperatures: P5009, Ultrathan® (TPU) compound (≈ 94 Shore A).
For high temperatures: V3839, FKM compound (≈ 90 Shore A).
2. Product Application:
|
Operating pressure
|
≤ 210 bar
|
|
Operating temperature
|
-35 °C to +100 °C
|
|
Sliding speed
|
≤1M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Adantage:
• Due to application-optimized geometry and compounds suitable for use in oiled
as well as in oil-free air (after initial lubrication on assembly).
• Bi-functional element: seal and wiper.
• Extreme wear resistance.
• Low static and dynamic friction thanks to miniaturized design.
• Smooth running due to optimum adjustment of the functional lips.
• Smooth running due to optimum lubricant-retaining sealing lip geometry.
• Excellent media resistance in case of suitable compound selection.
• Short axial assembly length.
• Short radial assembly depth.
• Installation in closed and undercut housings.
• Low compression set.
• The coordinated geometries of the seal and wiper lips achieve favourable friction coefficients and long service life.
5. Product Specification:
6. Installation:
The self-retaining rod seal/wiper profile DHS is manually or automatically snapped into
the installation housing while the piston rod is disassembled. Care is to be taken to
prevent sharp edges from damaging the wiping and sealing lips during assembly.
Initial lubrication is the prerequisite for very long operational life.
7. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
