PTFE+40% Bronze Hydraulic Cylinder Seals AD Type Rod Seals Wipers Sewage Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Accept customization |
| Minimum Order Quantity | 100PCS |
| Price | Negotiations |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PTFE+40%Cu+NBR | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Green | Style | AD |
| Size | Accept Customization | Temperature | -40~200℃ |
| Quality | FDA,High Quality | ||
| Highlight | Sewage Resistance Hydraulic Cylinder Seals |
||
You can tick the products you need and communicate with us in the message board.
| Accept customization |
|---|
Product Description
PTFE+40% Bronze AD TYPE Rod Seal,Rotate Wiper Sealing,High Temperature Resistance, Sewage Resistance
1. Product Description:

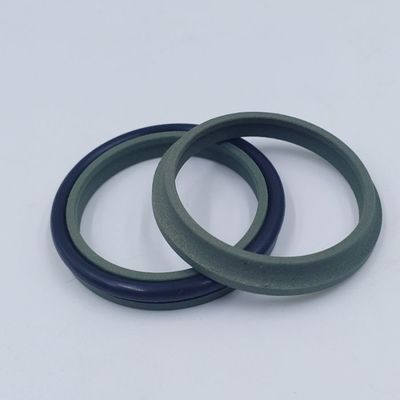

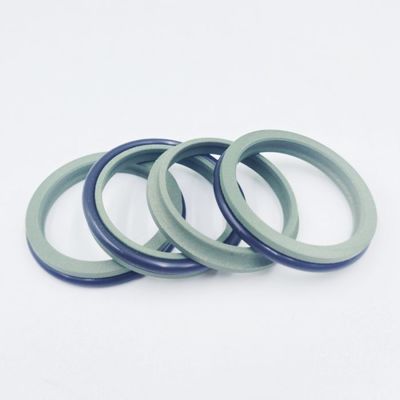

AD -type dustproof ring is composed of PTFE dust ring and O -shaped ring And have pre -tightening.
2.Product Application:
| Material | PTFE+40%bronze+NBR/FKM |
|
Operating temperature
|
-35 °C to +200 °C
|
|
Sliding speed
|
≤5M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
3.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4.Compounds:
Dust -proof ring: Polon052, modified PTFE+40%bronze.
Out-side O-ring: NBR70 Or FKM/VITON.
5.Adantage:
• A very small starting and sports friction can be ensured at low speeds.
• Excellent slide characteristics
• Dysgin resistance, long service life.
• The temperature range is wide (using the appropriate 0 -shaped circle material)
• Extremely resistant chemical medium (with appropriate 0 -shaped circle materials)
• Excellent media resistance in case of suitable compound selection.
6.INSTALLATION:
1.Install the rubber ring: put the rubber ring of Steter into the groove, not to be distorted.
2. Install polytary ethyl afluorhydrin sealing ring: compress the sealing rings of polytetrafluoroethylene (PTFE) into a waist shape. Be careful not to form a pointed bend, and then put the compressed PTFE sealing ring in the groove, use it with Gently flatter the hand.
3. Install the restoration of the heart shaft: push the restoration's heart shaft to the sealing part, and gently turn the heart shaft. Place it for 1 minute to remove the axis and install it.
7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
