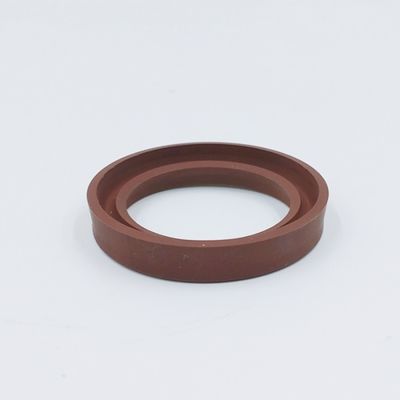

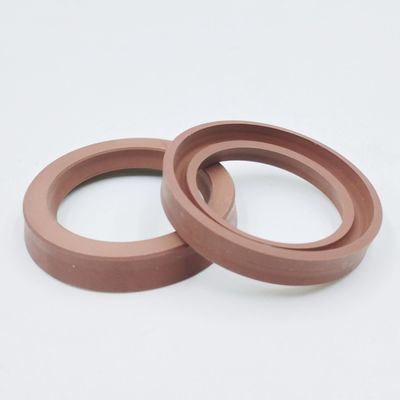

FKM MATERIAL C1 ROD SEAL,High temperature resistance PNEUMATIC CYLINDER SEALING,C1 3015 V3664
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | C1 |
| Minimum Order Quantity | 100PCS |
| Price | Negotiations |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR/FKM | Standard Or Nonstandard | Parker Standard |
|---|---|---|---|
| Color | Brown | Style | C1 |
| Size | 30*40*7 | Temperature | -30~200℃ |
| Quality | FDA,High Quality | ||
| Highlight | FKM MATERIAL C1 ROD SEAL |
||
You can tick the products you need and communicate with us in the message board.
| C1 3015 V3664 |
|---|
Product Description
1.Product Description:
C1 rod seal meets the requirements of the manufacturers of hydraulic and
pneumatic equipment for seals with the smallest possible housings. Although crosssections and heights are very small, the sealing performance is excellent.
2.Product Application:
| Material | NBR/FKM |
|
Operating temperature
|
-35 °C to +200 °C
|
|
Sliding speed
|
≤1M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
3.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4.Compounds:
Standard: N3571, NBR compound (≈ 70 Shore A).
For low temperatures: N8602, NBR compound (≈ 70 Shore A).
For high temperatures: V3664, FKM compound (≈ 85 Shore A).
For low temperatures: N8602, NBR compound (≈ 70 Shore A).
For high temperatures: V3664, FKM compound (≈ 85 Shore A).
5.Adantage:
• Good wear resistance.
• Easy installation.
• High temperature resistance in case of suitable compound selection.
• Excellent media resistance in case of suitable compound selection.
• Suitable compounds available for special requirements of the chemical
process industry.
• Suitable compounds available for special requirements of the food processing
industry.
• Installation in closed and undercut housings.
6.SPECIFICATION:
7.INSTALLATION:
The gap dimensions „e“ guarantee an optimum service life of the guiding tapes. For the seals, however, the gaps as mentioned on the respective catalogue pages are to be considered when it is essential to observe full working conditions (Range of Application).
8.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
