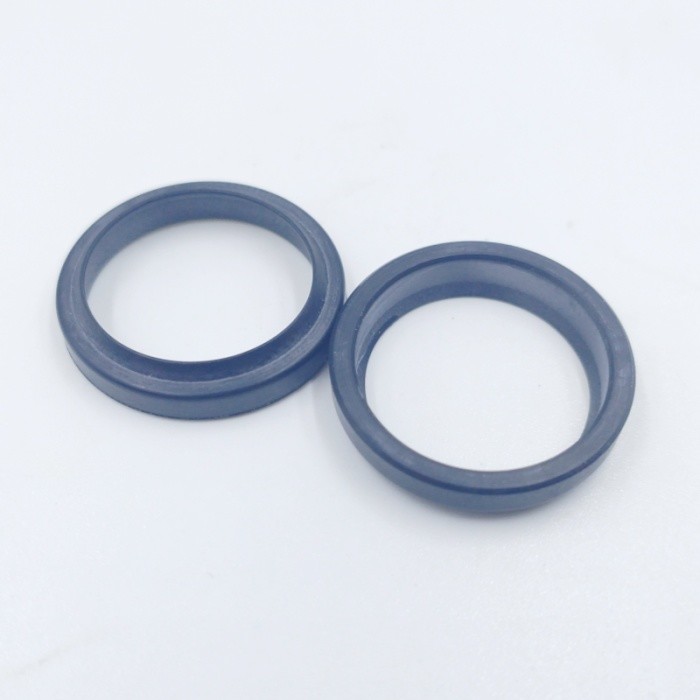

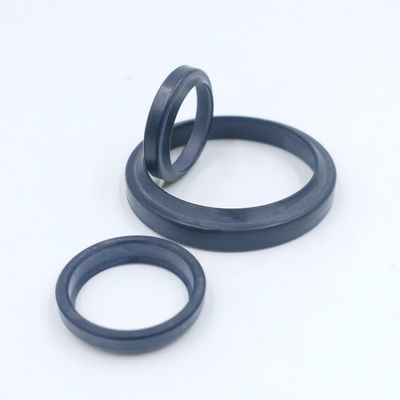

Temperature Resistant Hydraulic Buffer Rod Sealing , NBR Wiper Seal SER 3x6x2/2.75
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | SER |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.10/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR/FKM | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK | Style | SER |
| Size | 3*6*2.75 | Hardness | 80 Shore A |
| Temperature | -40~100℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston&rod Seal | ||
| Highlight | Temperature Resistant NBR Wiper Seal |
||
You can tick the products you need and communicate with us in the message board.
| SER-003 | SER-004 | |
|---|---|---|
| SER-005 | SER-006 | |
| SER-008 | SER-009 | |
| SER-010 | SER-10A | |
| SER-011 | SER-012 | |
| SER-014 | SER-016 | |
| SER-018 | SER-020 | |
| SER-022 | SER-025 | |
| SER-030 | SER-032 | |
| SER-035 | SER-040 |
Product Description
Ser Dust Seal,Hydraulic Buffer Rod Sealing,SER 3*6*2/2.75,NBR Material Wiper Seal
1. Product Description:
It is a dustproof ring without a U -shaped slot, which is conducive to smaller section installation
2. Product Characteristic:
● Small cross -section design: It has a small cross -sectional size, which enables it to adapt to the installation environment with limited space, especially suitable for small equipment or higher space requirements. For example, in some precision instruments and small pneumatic tools, the small section characteristics of SER sealing parts can meet the needs of its compact design.
● Good sealing performance: It can effectively prevent gas or liquid leaks, maintain stability of the system, and ensure the normal operation of the equipment. Whether it is static sealing or dynamic sealing conditions, it can play a reliable sealing effect. For example, between the piston of the cylinder and the cylinder cylinder, the SER sealing part can prevent the gas from leaking from the gap between the piston and the cylinder.
● Abrasion resistance: During the work, the sealing parts will produce friction with other components. The SER sealing parts have better abrasion resistance and can withstand long friction without being easily damaged, thereby ensuring the longer service life. This is particularly important for frequent motor atmosphere, which can reduce the replacement frequency of sealing and reduce maintenance costs.
● Temperature resistance: It can maintain good performance within a certain temperature range and meet the temperature requirements of different working environments. Whether in high temperature and low temperature environment, the stability of its sealing function and physical properties can be maintained.
3.Product Application:
| Material | NBR |
|
Sliding speed
|
≤0.5M/S |
| Media |
Compressed air, both lubricated and oil
free (after greasing for fitting)
|
4.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
5.Product specification:
| ITEM | ID | OD | t | H |
| SER-003 | 3 | 6 | 2 | 2.5 |
| SER-004 | 4 | 7 | 2 | 2.5 |
| SER-005 | 5 | 8 | 2 | 2.5 |
| SER-006 | 6 | 9 | 2 | 2.5 |
| SER-007 | 7 | 10 | 2 | 2.5 |
| SER-008 | 8 | 11 | 2 | 2.5 |
| SER-009 | 9 | 12 | 2 | 2.5 |
| SER-010 | 10 | 13 | 2 | 2.5 |
| SER-10A | 10 | 14 | 2.9 | 3.2 |
| SER-011 | 11 | 15 | 2.9 | 3.2 |
| SER-012 | 12 | 16 | 2.9 | 3.2 |
| SER-014 | 13.6 | 18 | 2.9 | 3.2 |
| SER-016 | 16 | 20 | 2.9 | 3.2 |
| SER-018 | 18 | 22 | 2.9 | 3.2 |
| SER-020 | 20 | 24 | 2.9 | 3.2 |
| SER-022 | 22 | 26 | 2.9 | 3.2 |
| SER-025 | 25 | 31 | 4.3 | 4.7 |
| SER-030 | 30 | 36 | 4.3 | 4.7 |
6.Installation:
The self-retaining rod seal/wiper profile SER is manually or automatically snapped into
the installation housing while the piston rod is disassembled. Care is to be taken to
prevent sharp edges from damaging the wiping and sealing lips during assembly.
Initial lubrication is the prerequisite for very long operational life.
7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
