Multi -level cylinder sealing ring,Pneumatic cylinder piston packing Z8 3224 P5007,Green TPU 82 Shore A seal
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Z8 3224 P5007 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100 PCS |
| Price | USD 0.35/PC |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | T/T,L/C |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Color | Green |
|---|---|---|---|
| Shape | Y Shape | Hardness | 90 Shore A |
| Temperature | -35~80℃ | Application | Pneumatic Cylinder Piston |
| Medium | Compressed Air, Both Lubricated And Oilfree (after Greasing For Fitting) | Size | 32*24*3.25 |
| Highlight | Green TPU cylinder sealing ring |
||
You can tick the products you need and communicate with us in the message board.
| 8*4.8*2.55 | |
|---|---|
| Z8 1610 P5007 | |
| Z8 3224 P5007 |
Product Description

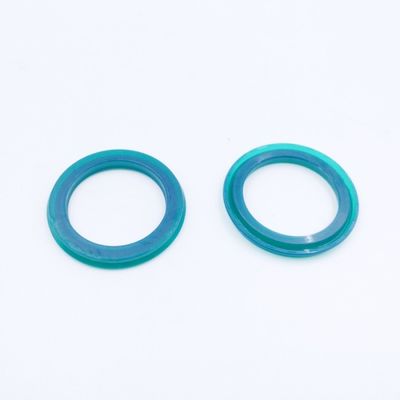

Multi-Level Cylinder Sealing Ring - Pneumatic Cylinder Piston Packing Z8 3224 P5007
Z8 cylinder seal is a single-acting lip seal designed for pistons in pneumatic cylinders and valves. This seal requires minimal housing dimensions while delivering exceptional performance.
Product Specifications
| Item | Z8 |
| Material | PU (Polyurethane) |
| Hardness | 82 Shore A |
| Temperature Range | -35℃ to 80℃ |
| Size | 32*24*3.25 |
| Color | Green |
| Medium | Compressed air, both lubricated and oil-free (after greasing for fitting) |
| Application | Pneumatic cylinder, Dot valve |
Key Advantages
- Application-optimized geometry and compounds suitable for use in oiled and oil-free air (after initial lubrication)
- Excellent sealing performance in extremely small assembly conditions
- Extreme wear resistance for extended service life
- Low static and dynamic friction thanks to miniaturized design
- Smooth running due to optimum lubricant-retaining sealing lip geometry
- Simplified installation process
- Excellent media resistance with proper compound selection
- Compatible with installation in closed and undercut housings
- Low compression set maintains sealing integrity
Packaging & Certification
Packaging: Inner plastic bag/outside carton, customized packaging available based on customer requirements.
Certifications: CE, ROHS, SGS, ISO9001-2015
Manufacturing Capabilities
Available Materials
NR, NBR, HNBR, FKM, FFKM, EPDM, CR, VMQ, PU, PTFE, PEEK, POM, and other specialized materials
Quality Assurance
- All manufacturing processes comply with ISO-9001:2015 quality system
- ROHS and SGS certified materials and processes
- Excellent chemical and physical properties including chemical resistance, oil resistance, temperature resistance, and wear resistance
- Custom design and manufacturing of complete rubber parts based on customer requirements
- Available in various sizes and color options
Our Services
- OEM and ODM services provided according to customer drawings or samples
- Competitive pricing with high quality standards
- Optimized delivery times and comprehensive customer service
- Professional design, sampling, and production capabilities
- 100% inspection of all products before shipment
- Comprehensive installation guidance
- 24-hour response time for all inquiries
Frequently Asked Questions
How to choose materials?
Material selection depends on the application environment, including medium, temperature, pressure, and other operational conditions.
How to deliver the goods?
Small orders: Delivered by express carriers (DHL, FEDEX, UPS, TNT). Large orders: Delivered by air or sea freight.
Are you a manufacturer?
Yes, we specialize in the production of hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for freight costs.
How is the quality?
All manufacturing processes comply with ISO-9001:2015 quality standards, and every product undergoes 100% inspection before shipment.
