Multi Level Cylinder Sealing Ring,Pneumatic Cylinder Piston Packing Z8 4032 P5007,Green TPU 82 Shore A Seal
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Z8 4032 P5007 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100 PCS |
| Price | USD 0.40/PC |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | T/T,L/C |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Color | Green |
|---|---|---|---|
| Shape | Y Shape | Hardness | 90 Shore A |
| Temperature | -35~80℃ | Application | Pneumatic Cylinder Piston |
| Medium | Compressed Air, Both Lubricated And Oilfree (after Greasing For Fitting) | Size | 40*32*3.25 |
| Highlight | Green TPU cylinder sealing ring |
||
You can tick the products you need and communicate with us in the message board.
| 8*4.8*2.55 | |
|---|---|
| Z8 1610 P5007 | |
| Z8 3224 P5007 | |
| Z8 4032 P5007 |
Product Description

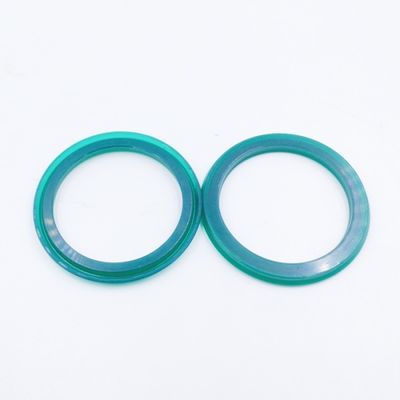

Multi Level Cylinder Sealing Ring - Pneumatic Cylinder Piston Packing
Z8 4032 P5007, Green TPU 82 Shore A Seal
Product Overview
Z8 cylinder seal is a single-acting lip seal designed for pistons in pneumatic cylinders and valves. This seal requires minimal housing dimensions for efficient operation.
| Item | Z8 |
|---|---|
| Material | PU |
| Hardness | 82 Shore A |
| Temperature Range | -35℃ to 80℃ |
| Size | 40*32*3.25 |
| Color | Green |
| Medium | Compressed air, both lubricated and oil-free (after greasing for fitting) |
| Application | Pneumatic cylinder, Dot valve |
Key Advantages
- Application-optimized geometry and compounds suitable for use in oiled and oil-free air (after initial lubrication on assembly)
- Excellent sealing performance in extremely small assembly conditions
- Extreme wear resistance for extended service life
- Low static and dynamic friction thanks to miniaturized design
- Smooth running due to optimum lubricant-retaining sealing lip geometry
- Simplified installation process
- Excellent media resistance with proper compound selection
- Installation in closed and undercut housings
- Low compression set maintains sealing integrity
Packaging & Certification
Package: Inner plastic bag/outside carton, customized packaging available
Certificates: CE, ROHS, SGS, ISO9001-2015
Manufacturing Capabilities
Available Materials
NR, NBR, HNBR, FKM, FFKM, EPDM, CR, VMQ, PU, PTFE, PEEK, POM, and other specialized materials
Quality Assurance
- All manufacturing processes comply with ISO-9001:2015 quality system
- ROHS and SGS certified materials and processes
- Excellent chemical and physical properties including chemical resistance, oil resistance, temperature resistance, and wear resistance
- Complete custom design and manufacturing services based on customer requirements
- Available in various sizes and custom colors
Our Services
- OEM and ODM services provided
- Production according to customer drawings or samples
- Competitive pricing with high quality standards
- Optimized delivery times and customer service
- Complete design, sampling, and production services
- 100% inspection before shipment
- Comprehensive installation guidance
- 24-hour response time for inquiries
Frequently Asked Questions
How to choose materials?
Material selection depends on the operating environment, including medium, temperature, pressure, and other specific application requirements.
How are goods delivered?
Small orders: Express delivery via DHL, FEDEX, UPS, TNT. Large orders: Air freight or sea shipping options available.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Are they free?
Yes, we provide samples free of charge. Customers are responsible for freight costs.
How is the quality ensured?
All manufacturing processes comply with ISO-9001:2015 quality system standards. Every product undergoes 100% inspection before shipment to ensure quality and performance.
