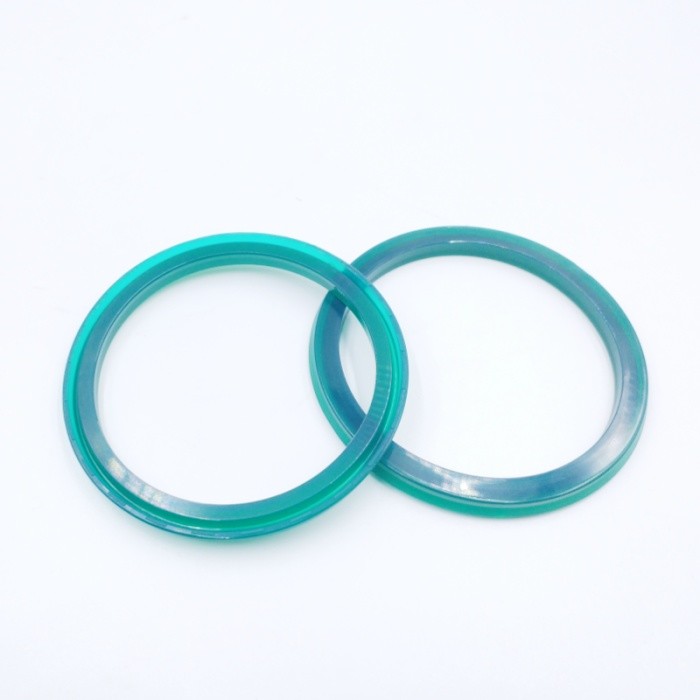

Green TPU Multi Level Pneumatic Cylinder Piston Seal 82 Shore A Z85042P5007
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Z8 5042 P5007 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100 PCS |
| Price | USD 0.55/PC |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | T/T,L/C |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | PU | Color | Green |
|---|---|---|---|
| Shape | Y Shape | Hardness | 90 Shore A |
| Temperature | -35~80℃ | Application | Pneumatic Cylinder Piston |
| Medium | Compressed Air, Both Lubricated And Oilfree (after Greasing For Fitting) | Size | 50*40*3.25 |
| Highlight | Multi Level Cylinder Sealing Ring |
||
You can tick the products you need and communicate with us in the message board.
| 8*4.8*2.55 | |
|---|---|
| Z8 1610 P5007 | |
| Z8 3224 P5007 | |
| Z8 4032 P5007 | |
| Z8 5042 P5007 |
Product Description
Green TPU Multi Level Pneumatic Cylinder Piston Seal 82 Shore A Z85042P5007
Product Overview
Multi Level Cylinder Sealing Ring Pneumatic Cylinder Piston Packing Z8 5042 P5007, Green TPU 82 Shore A Seal
Product Details
Z8 cylinder seal is a single-acting lip seal for pistons in pneumatic cylinders and valves. It requires small housing dimensions.
Technical Specifications
| Item | Z8 |
| Material | PU |
| Hardness | 82 Shore A |
| Temperature | -35℃ to 80℃ |
| Size | 50*40*3.25 |
| Color | Green |
| Medium | Compressed air, both lubricated and oil-free (after greasing for fitting) |
| Application | 1. Pneumatic cylinder. 2. Dot valve. |
Product Advantages
- Application-optimized geometry and compounds suitable for use in oiled as well as oil-free air (after initial lubrication on assembly)
- Good sealing performance in extremely small assembly conditions
- Extreme wear resistance
- Low static and dynamic friction thanks to miniaturized design
- Smooth running due to optimum lubricant-retaining sealing lip geometry
- Easier installation
- Excellent media resistance with suitable compound selection
- Installation in closed and undercut housings
- Low compression set
Packaging & Certification
Inner plastic bag/outside carton, accepting customer needs. Certified: CE/ROHS/SGS/ISO9001-2015
Keywords: pneumatic cylinder piston seal, z8 packing, Z8 5042 P5007 sealing
Company Advantages
- Available materials: NR, NBR, HNBR, FKM, FFKM, EPDM, CR, VMQ, PU, PTFE, PEEK, POM, etc.
- All manufacturing processes conform to ISO-9001:2015 system with ROHS/SGS certification
- Excellent chemical and physical properties including chemical resistance, oil resistance, temperature resistance, wear resistance, and dust resistance
- Custom design and manufacturing of complete sets of rubber parts based on customer requirements
- Available in various sizes and colors
Our Services
- OEM and ODM services provided - production according to customer drawings or samples
- Competitive prices, high quality, best delivery time and service
- Best design, sample, and production for customer requirements
- 100% inspection before shipment
- Installation guidance provided
- Reply within 24 hours
Frequently Asked Questions
How to choose materials?
Material selection depends on the application environment, including medium, temperature, pressure, etc.
How to deliver the goods?
Small orders delivered by express (DHL, FEDEX, UPS, TNT). Large orders delivered by air or ship.
Are you a manufacturer?
Yes, we specialize in hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers pay for freight costs.
How is the quality?
All manufacturing processes conform to ISO-9001:2015 system with 100% inspection before shipment.
