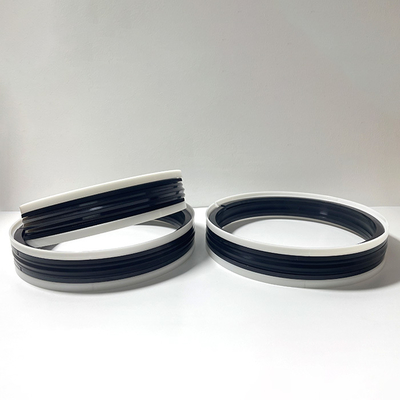

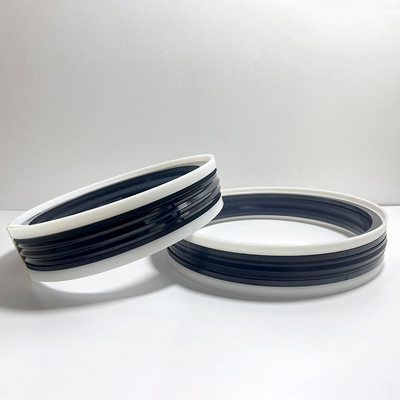

TPM combined piston seal, a hydraulic piston seal made of NBR and PTFE materials, model TPM-393295/393314
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | TPM-393295/393314 |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | TPM Combination Seal | Color | Black And White |
|---|---|---|---|
| Material | NBR , PU | Feature | Sealing Performance,Heat Resistance,gas Tightness,water Resistance,Oil Resistance |
| Temperature | 30℃~+120℃ | Medium | Mineral Oil Based Hydraulic Fluids |
| Pressure | 0~0.05MPA | Product Overview | KDAS Combination Seals Are Often Used As Sealing Elements In Hydraulic Cylinders And Pistons That Undergo Repeated Motion. |
| Highlight | TPM hydraulic piston seal NBR PTFE |
||
You can tick the products you need and communicate with us in the message board.
| Outer Diameter * Inner Diameter * Intermediate Platform Height * Total Height | |
|---|---|
| 393295 100*75*22.4*35.1 | |
| 393314 100*80*25*37.7 |
Product Description
TPM Combined Piston Seal | Zero-Leakage High-Pressure Performance * Extended Service Life * Precision Engineered Sealing Solution
Engineered for demanding hydraulic/pneumatic systems to minimize downtime and maximize equipment reliability
Product Overview
The TPM Combined Piston Seal represents a next-generation integrated sealing system optimized for high-pressure, high-speed piston applications. Featuring an innovative dual-material composite structure (e.g., PTFE + elastomer) and unified guide ring/sealing lip design, it delivers:
- Zero-leakage performance (static/dynamic sealing)
- Ultra-low friction coefficient (reduces energy consumption)
- Extrusion & wear resistance (handles pressures >400 Bar)
- Broad temperature compatibility (-30°C to +110°C)
Technical advantages
- Intelligent structural design
- Three-function architecture: The guide ring, main sealing lip, and elastic compensator work together to eliminate gap leakage.
- Self-activating pressure groove: Dynamic pressure activates the sealing lip--the sealing force increases with pressure.
- Advanced materials science
- Friction optimization layer: PTFE material reduces starting friction by up to 80%.
- High-strength backing: NBR, FKM, or polyurethane elastomers resist burst impact.
- Engineering validated performance
- 10 million cycle durability test (simulating heavy machinery conditions)
- Compatible with biodegradable hydraulic oil (environmental compliance)
| PRODUCT NAME | TPM Piston seal |
|---|---|
| Temperature | -30~+110ºC |
| Press | 0~0.05MPA |
| Rotational Speed | 0-25m/s |
| Medium | lubricating Oil, Grease, Water |
| Other material of oil seal | Silicone, NBR, Metal , PTFE, etc. |
Industry Applications
Heavy Machinery: Excavator hydraulic cylinders
Crane pistonsInjection Molding: Clamping cylinder precision seals
Energy Equipment : Wind turbine pitch actuators ,oil/gas wellhead controls
Mobile Machinery : Agricultural steering systems
Advanced Manufacturing : Die-casting machines, aerospace actuators
Case Study: Port crane hydraulic cylinder maintenance intervals extended from 6 to 24 months after switching to TPM seals
