GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring

  • GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring
  • GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring
  • GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring
Place of Origin CHINA
Brand Name DZK
Model Number GA(WPM）dustproof metal casing
Minimum Order Quantity 100PCS
Price negotiate
Packaging Details 100pcs/bag
Delivery Time 7-10 days
Payment Terms L/C,T/T
Supply Ability 1000000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Ga Dustproof Ring Oil Seal Material Options NBR+iron Shell ，PU+iron Shell
Operating Temperature -40°C To +110°C Maximum Operating Speed 1M/SEC
Speed ≤2m/s Using Medium General-purpose Petroleum-based Hydraulic Fluid
Application Range Suitable For Hydraulic Cylinder Dust-proof Application Scenarios Characteristics Outer Metal Casing, Inner Rubber. Single-lip Dustproof Seal, Oil-resistant, Wear-resistant, And Anti-aging
Highlight

iron shell hydraulic cylinder seals
You can tick the products you need and communicate with us in the message board.
GA 10*16*5/7
GA 10*16*3/4.5
GA 10*20*5/8
GA 12*20*4/6
GA 16*26*5/8
GA 20*28*3.5/5
GA 20*28*4/6
GA 20*26*4/7
GA 20*28*5/8
GA 20*30*4/5
GA 20*30*4/6
GA 20*30*5/7
GA 20*30*7/10
GA 22*28*3/4
GA 22*28*5/8
GA 22*28*5/9
GA 22*30*5/7
GA 24*32*5/7
GA 24*35*5/8
GA 25*31*5/7
GA 25*32*5/7
GA 25*35*5/7
GA 25*35*5/8
Leave a Message
GA 10*16*5/7
Product Description
Product Overview

The Ga Dustproof Ring Oil Seal is engineered as a critical protective component for hydraulic cylinders and other industrial equipment. This specialized seal serves a dual purpose: preventing harmful contaminants such as dust, dirt, and moisture from entering sensitive machinery while retaining essential lubricants within the system.

Manufactured using high-quality materials and advanced production techniques, the Ga Dustproof Ring Oil Seal delivers reliable performance even in harsh operating environments, extending equipment lifespan and reducing maintenance requirements.

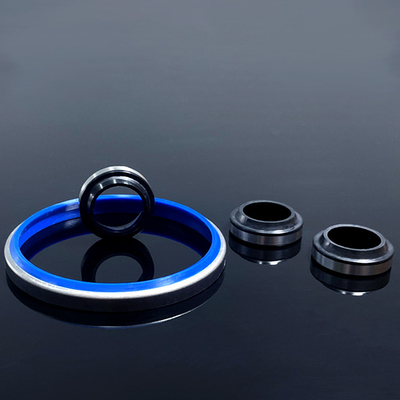

GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring 0
Key Features & Benefits
Superior Contamination Prevention
  • Effectively blocks dust, dirt, and moisture from entering hydraulic systems
  • Protects piston rods, seals, and cylinder walls from abrasive wear
  • Maintains clean hydraulic fluid, reducing system contamination issues
  • Extends equipment service life by up to 30% in typical applications
Exceptional Performance
  • Wide operating temperature range: -40°C to +110°C
  • Excellent resistance to hydraulic fluids and lubricants
  • Designed for both static and dynamic applications
  • Maintains flexibility and sealing performance over extended periods
Easy Installation & Compatibility
  • Designed for straightforward fitting and replacement
  • Compatible with standard hydraulic cylinder configurations
  • Available in various sizes to meet industry standards
  • Suitable for retrofitting in existing equipment

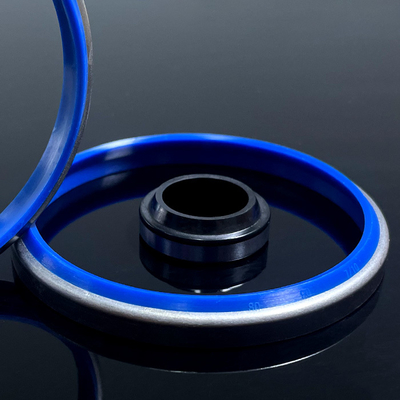

GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring 1
Technical Specifications
Parameter Specification
Material Options NBR+iron shell ,PU+iron shell
Operating Temperature -40°C to +110°C
Using medium General-purpose petroleum-based hydraulic fluid
characteristics Outer metal casing, inner rubber. Single-lip dustproof seal, oil-resistant, wear-resistant, and anti-aging
GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring 2 GA Outside Skeleton Iron Shell Hydraulic Cylinder Seals , Ga Dustproof Ring Oil Seal The Outer Iron Shell Seal Ring 3
Applications

The Ga Dustproof Ring Oil Seal is widely used across various industries where equipment protection is critical:

  • Construction machinery (excavators, cranes, loaders)
  • Agricultural equipment hydraulic systems
  • Industrial hydraulic presses
  • Material handling equipment
  • Mining machinery
  • Mobile hydraulic systems
  • Steel production facilities
  • Automotive manufacturing equipment
Installation Guidelines

Proper installation ensures optimal performance of your Ga Dustproof Ring Oil Seal:

  1. Ensure all components are clean before installation
  2. Check housing and rod surfaces for damage or wear
  3. Lubricate the seal with compatible hydraulic fluid before fitting
  4. Use proper tools to avoid damaging the seal during installation
  5. Ensure correct orientation according to equipment specifications
  6. Inspect regularly and replace at first signs of wear or damage
