SDA Pneumatic Cushion Seal Gasket, Pneumatic Vibration Damping Washer
| Place of Origin | CHIAN |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Cylinder cushion gasket |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Product Name | Cylinder Cushion Gasket | Material | High Hardness NBR/TPU |
|---|---|---|---|
| Pressure Rating | 0 - 1.6 MPa | Scope Of Application | -30°C To +100°C |
| Intermediary | Oil-lubricated Gas, As Well As Dry Air And Oil-free Air (initial Lubrication Required During Assembly) | Hardness | Shore Hardness (SHA) 80° |

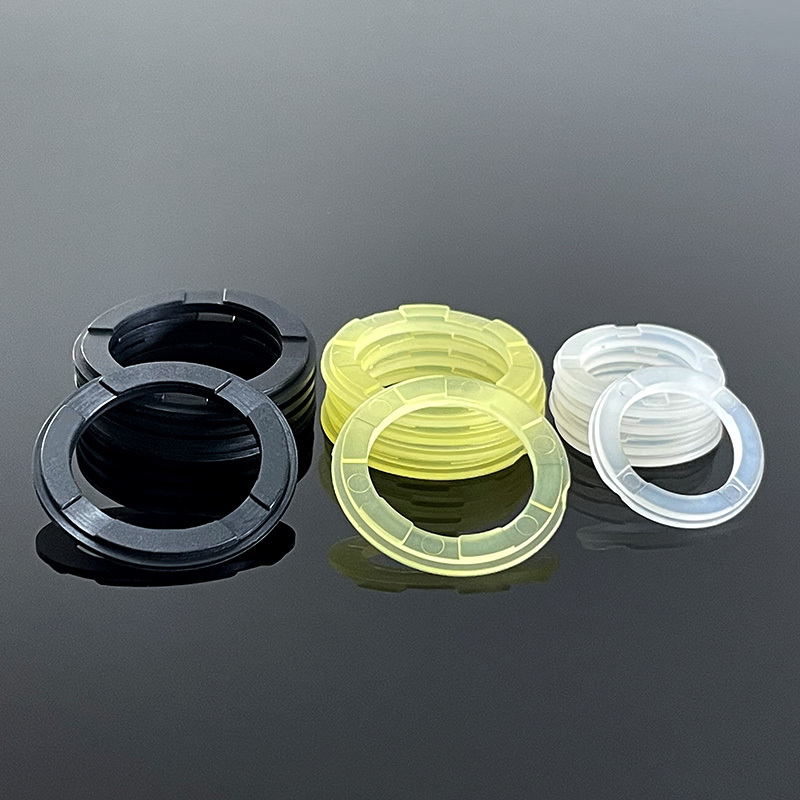

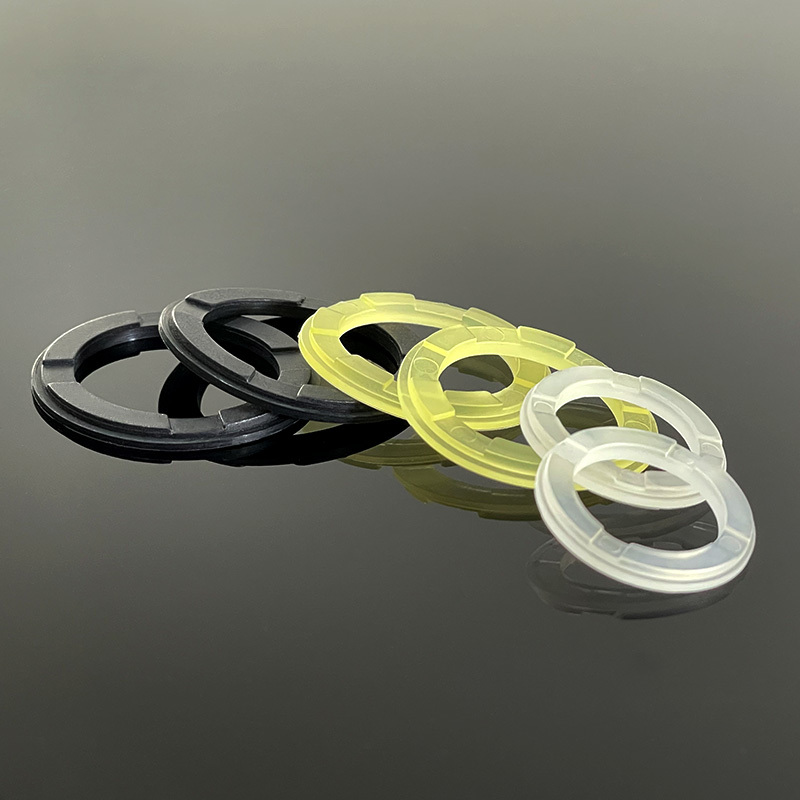

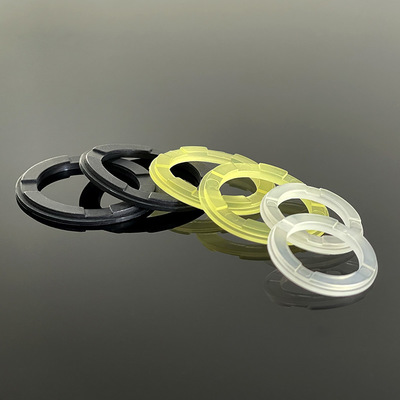

| Applicable Scope | Suitable For Thin-type Cylinders | Color | White, Yellow, Black |
| Highlight | pneumatic cushion seal gasket |
||
Product Description
SDA Pneumatic Cushion Seal Gasket | Advanced Vibration Damping Washer
Multi-Functional Sealing & Shock Absorption | Noise Reduction & Equipment Protection
Product Overview
The SDA Pneumatic Cushion Seal Gasket is an engineered polymer component that combines sealing, cushioning, and vibration damping in one integrated solution. Designed specifically for pneumatic systems, it effectively absorbs shock, reduces noise, and prevents leaks in connections subject to pulsation, vibration, or thermal cycling.
Key Features & Benefits
In industrial pneumatic systems, the SDA pneumatic cushioning seal gasket provides precise buffering at the end of cylinder piston strokes, reducing rebound speed by up to 80% while protecting equipment. It delivers efficient sealing to prevent air leakage, ensuring system pressure stability and energy conservation. The design automatically compensates for installation deviations and operational changes, ensuring stable performance.
Manufactured from high-quality polyurethane, these gaskets offer 2-3 times longer lifespan than traditional materials. The compact design integrates both cushioning and sealing functions, saving valuable space. Standardized design simplifies installation and maintenance, helping reduce factory costs and improve equipment operating efficiency.
Technical Specifications
| Material | High hardness NBR/TPU |
| Pressure Rating | 0 - 1.6 MPa |
| Scope of Application | Suitable for thin cylinders |
| Temperature Range | -30°C to +100°C |
Product Performance
The SDA/MAL cylinder buffer gasket provides effective cushioning and vibration reduction in cylinders. It mitigates impact between piston metal and cylinder metal during reciprocating motion, delivering superior cushioning, vibration reduction, and protection for metal components. This results in reduced noise during cylinder operation and extended cylinder service life.
These cylinder seals feature easy installation. To maximize seal longevity, avoid sharp edges during installation, apply initial lubrication, and maintain smooth cylinder surfaces.
Applications
- Pneumatic Cylinders: Mounting cushions for smooth operation
- Air Compressors: Vibration isolation at connection points
- Robotic Systems: Shock absorption for pneumatic grippers
- HVAC Controls: Vibration damping in pneumatic actuators
- Industrial Automation: Vibration isolation for precision equipment
