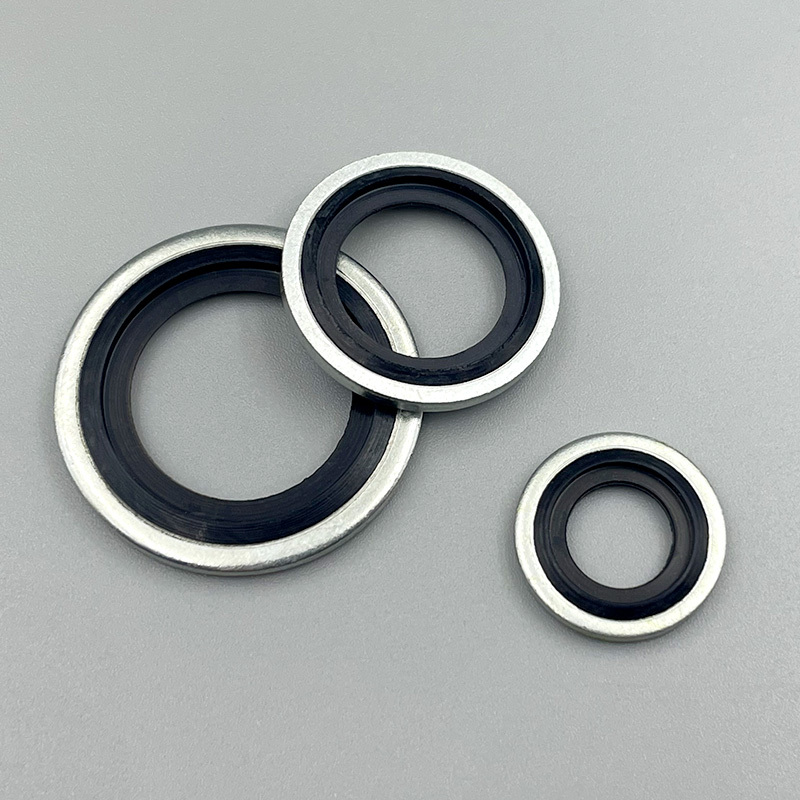

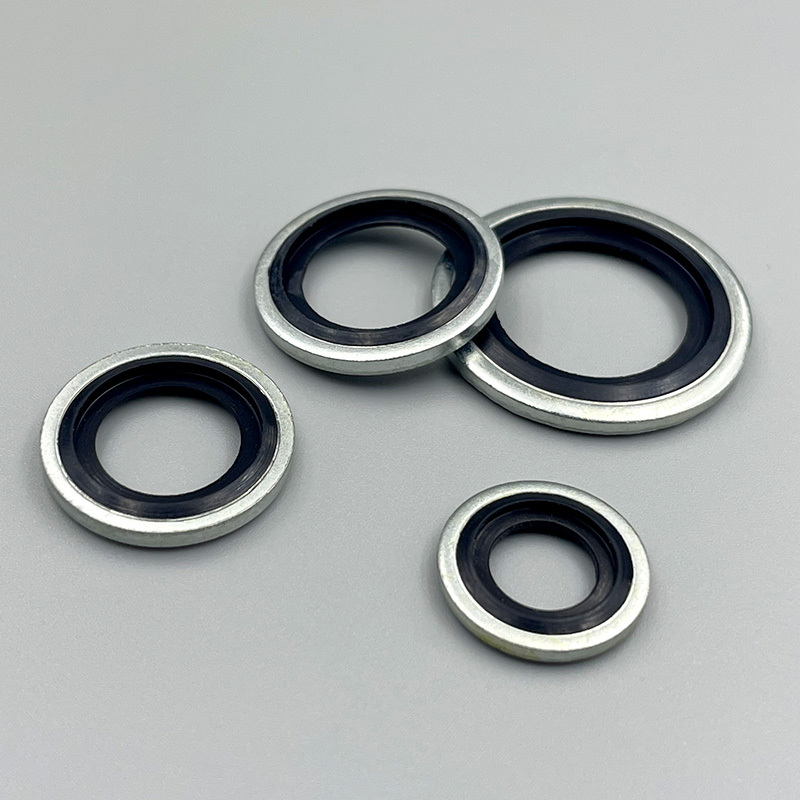

Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
| Place of Origin | CHIAN |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Jb982-77 |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Combined Sealing Washer Seals | Primary Materials | 304 Stainless Steel, NBR |
|---|---|---|---|
| Temperature Range | -25°C To +100°C | Medium | Oil |
| Governing Standard | Jb982-77 | Hardness | 70 Shore Hardness |
| Characteristic | Oil-resistant, Wear-resistant, Waterproof And Dustproof, High-temperature Resistant |
You can tick the products you need and communicate with us in the message board.
Product Description
JB982-77 Combined Sealing Washer | All-Metal Self-Sealing Washer for High-Pressure & High-Temperature Applications
Integral Sealing & Fastening | Aerospace & Hydraulic Standard | Reusable Design
Product Overview
The JB982-77 Combined Sealing Washer is a precision-engineered,Composed of a metal gasket and rubber, it uses oil as the medium and is used for sealing threaded pipe joints and plugs. Its operating pressure is 400 kgf/cm² (39.2 MPa) and operating temperature ranges from -25℃ to 80℃. The gasket is a component placed between the connected part and the nut, usually a flat metal ring. It serves to protect the surface of the connected part from scratches by the nut and distribute the pressure of the nut on the connected part.
Technical Specifications (Typical)
| Parameter | Standard Specification |
|---|---|
| Governing Standard | Jb982-77 |
| Primary Materials | 304 stainless steel, NBR |
| Temperature Range | -25°C to +100°C |
| Hardness | 70 Shore Hardness |
| characteristic | Oil-resistant, wear-resistant, waterproof and dustproof, high-temperature resistant |
Core Features and Advantages
- Two-in-One Design: Combines the functions of a flat washer and a sealing washer, simplifying the assembly process.
- All-Metal Construction: Made of stainless steel, suitable for extreme temperature and pressure environments.
- Pressure-Activated Sealing: The sealing lip deforms under bolt torque to form an airtight or liquid-tight seal.
- Reusable: Can usually be reused multiple times if within the deformation limit, reducing lifecycle costs.
- Wide Compatibility: Resistant to corrosion, radiation, and most highly corrosive chemicals.
Application Fields
It is widely used in hydraulic and pneumatic systems, construction machinery and other fields. It is suitable for working conditions with sealing surface deviation or vibration, ensuring sealing reliability.
