Piston Cylinder Wear-resistant Sealing Ring Support Guide Ring
| Place of Origin | CHIAN |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | Piston Cylinder Wear-resistant Sealing Ring |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Product Name | Piston Cylinder Wear-resistant Sealing Ring | Temperature Range | -30°C To +100°C |
|---|---|---|---|
| Pressure Rating | 0-2Mpa | Standard Materials | High Hardness POM |
| Product Color | Orange | Surface Of The Product | Smooth And Burr-free |
| Application Field | Standard Cylinder | Performance | Corrosion-resistant、high-sealing 、low-temperature Resistant、high-temperature Resistant |
| Highlight | pneumatic cylinder sealing ring |
||
Product Description

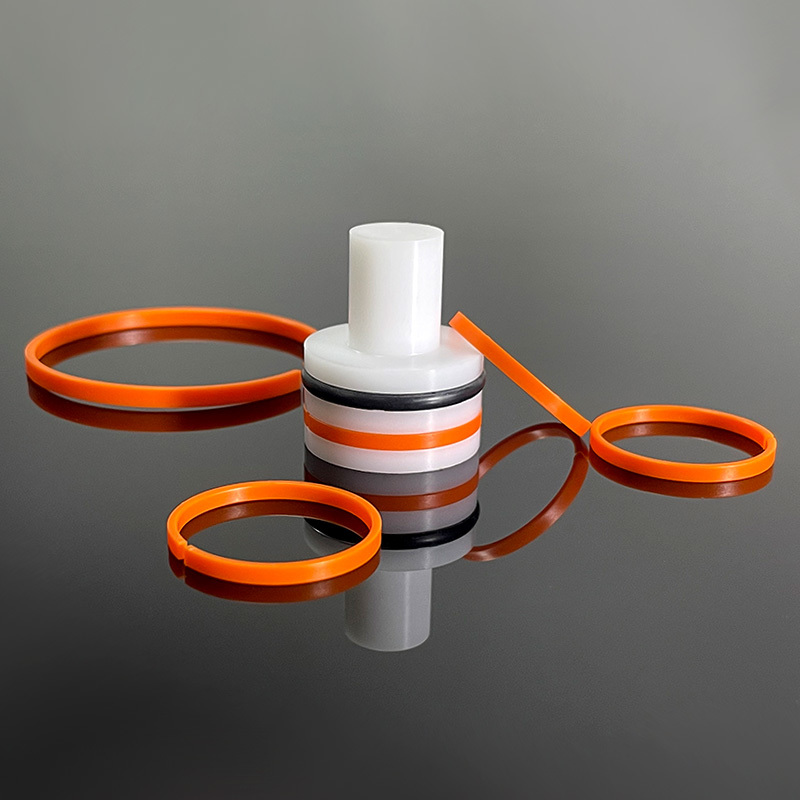

Piston Cylinder Wear-resistant Sealing Ring Support Guide Ring
The Piston Cylinder Wear-resistant Sealing Ring is a high-performance sealing solution engineered for demanding hydraulic and pneumatic applications. Utilizing advanced materials and precision manufacturing, this seal delivers exceptional durability, reliable sealing performance, and extended service life even under harsh operating conditions.
Product Overview

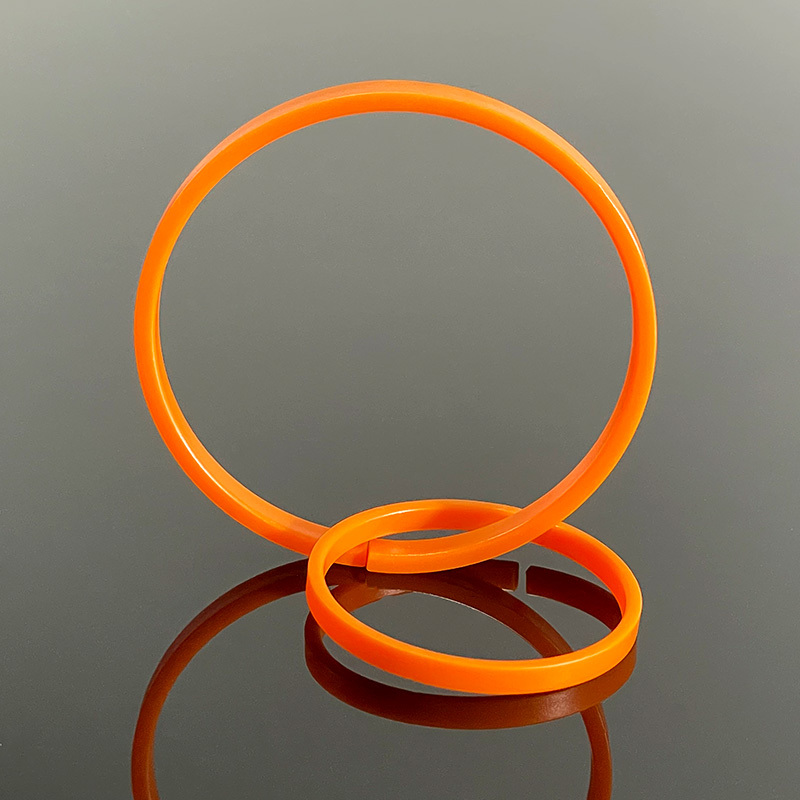

This guide ring is a critical component used in cylinders to support the movement of pistons. It prevents direct contact and friction between the piston and the cylinder body during motion, thereby protecting both the cylinder body and the piston from damage. The ring features easy installation, quick fastening without auxiliary tools, boundary force compensation, excellent wear resistance, long service life, lateral load absorption, and centering effects that increase seal extrusion gap.
Core Features and Advantages
- Excellent Wear Resistance - Advanced POM material withstands abrasive environments
- Low Friction Design - Optimized geometric structure reduces heat generation and energy consumption
- Superior Sealing Performance - Maintains effective sealing under high pressure and dynamic conditions
- Wide Pressure Range - Reliable operation between 0-2Mpa
Technical Specifications
| Parameter | Standard Range |
|---|---|
| Temperature Range | -30°C to +100°C |
| Pressure Rating | 0-2Mpa |
| Standard Materials | High hardness POM |
| Color | Orange |
Applications
- Hydraulic Cylinders - Excavators, presses, injection molding machines
- Pneumatic Systems - Industrial automation, robotics
- Heavy Machinery - Construction equipment, agricultural machinery
- Industrial Equipment - Pumps, compressors, valves
- Mobile Equipment - Cranes, forklifts, mining equipment
