APA NBR Rubber Pneumatic Cylinder Piston Rod Double O Ring Gasket Seal
| Place of Origin | CHIAN |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | APA |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Product Name | APA Cylinder Seal | Pressure Rating | 0-1.6MPa |
|---|---|---|---|
| Temperature Range | -20°C To +80°C | Material | NBR (Nitrile Rubber) |
| Surface Speed | ≤1m/s | Hardness | Shore Hardness (SHA) 70° |
| Color | Black (Standard) | Medium | Oil-lubricated Air, As Well As Dry Air And Oil-free Air (which Requires Initial Lubrication During Assembly) |
| Highlight | Double O Ring Gasket Seal |
||
Product Description
The APA NBR Rubber Pneumatic Cylinder Piston Rod Double O-Ring Seal features a precision-engineered dual-sealing design that provides an extra layer of protection against air leakage in critical pneumatic applications. Manufactured from high-quality NBR rubber, this seal delivers reliable performance, excellent compression recovery, and long-term durability in demanding industrial environments.
Key Features & Benefits
- Dual-Sealing Security - Two independent sealing points ensure zero leakage even if one seal is compromised
- Premium NBR Material - Excellent resistance to air, water, and lubricants with superior elasticity
- Easy Installation - Standard O-ring groove design simplifies replacement and maintenance
- Cost-Effective Solution - Provides redundant sealing at a competitive price point
- Wide Compatibility - Fits standard pneumatic cylinders from major manufacturers
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | NBR (Nitrile Rubber) |
| Temperature Range | -20°C to +80°C |
| Pressure Rating | 0-1.6MPa |
| Color | Black (Standard) |
Applications
- Industrial Automation - Pneumatic cylinders in assembly lines
- Packaging Equipment - Sealing systems for wrapping and filling machines
- Automotive Manufacturing - Pneumatic controls and actuators
- Food Processing - Equipment using food-grade air systems
- Material Handling - Conveyor systems and transfer equipment
Enhanced Reliability
- Redundant Sealing Design: Two independent sealing lips provide backup protection
- Consistent Performance: Maintains sealing integrity through millions of cycles
- Contamination Resistance: Effective barrier against dust and particulate ingress
Material Excellence
- Optimized NBR Compound: Specially formulated for pneumatic applications
- Excellent Compression Set: Maintains sealing force over extended periods
- Aging Resistance: Withstands oxidation and environmental degradation
Quality Assurance
- 100% dimensional verification
- Material certification available
- Batch consistency testing
- Performance validation in simulated conditions

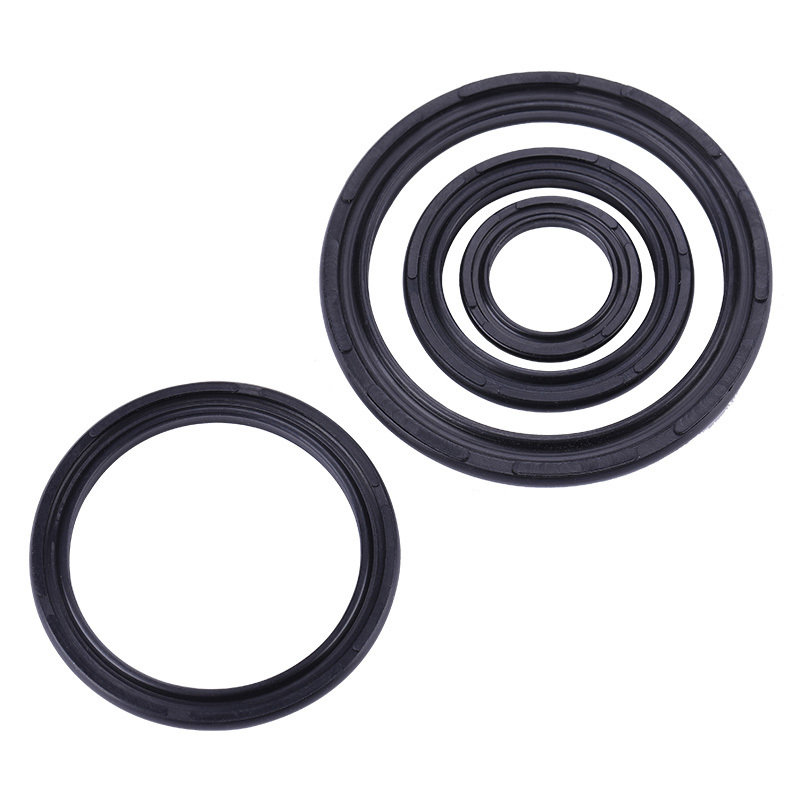

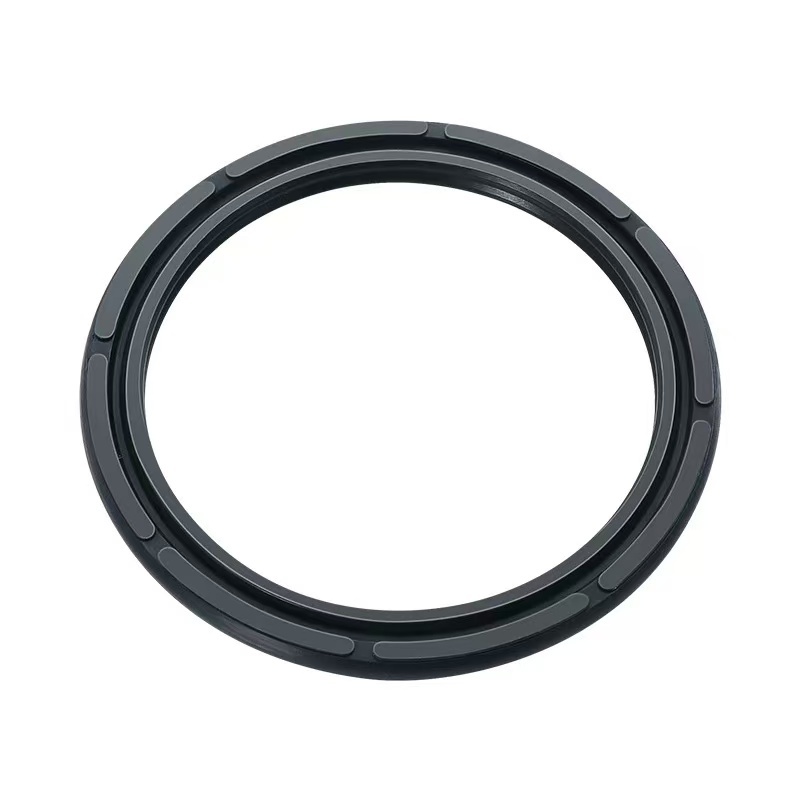

Product Images
