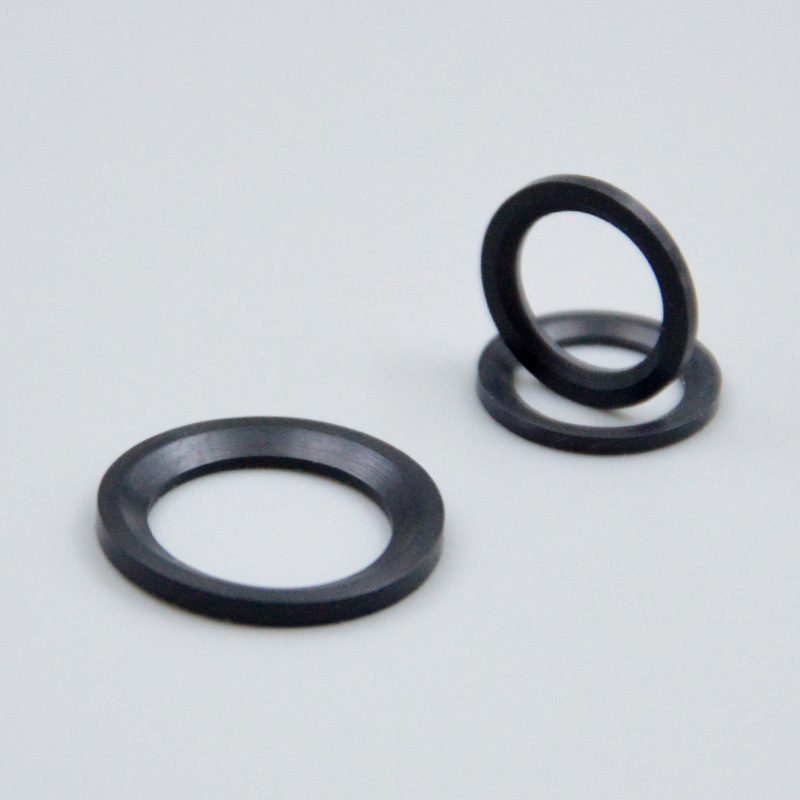

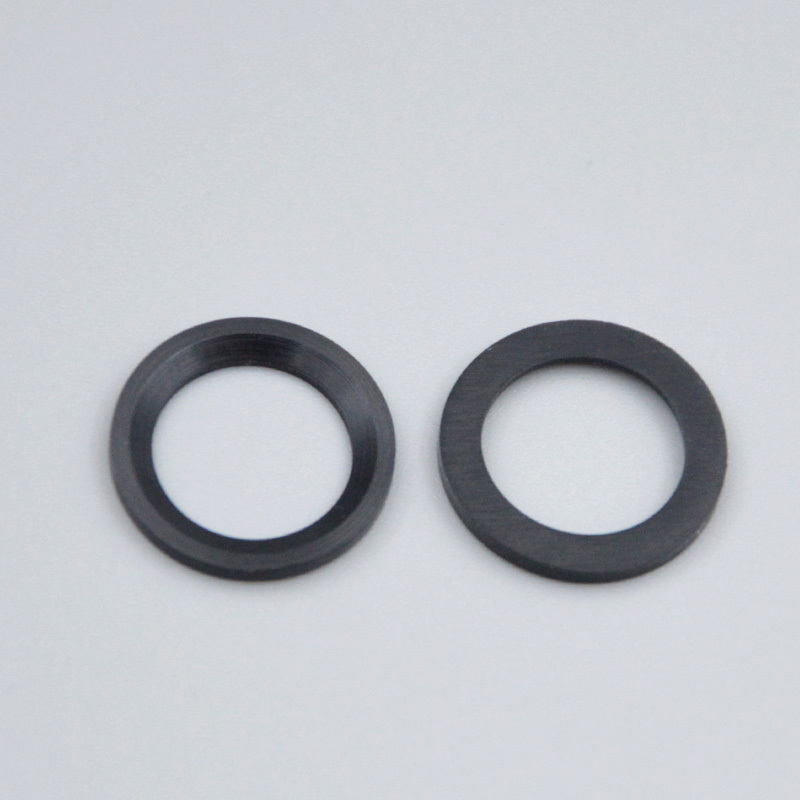

High-quality Wear-resistant NBR/FKM Rubber DIN 3869 ED Seal
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | ED Ring |
| Minimum Order Quantity | 100PCS |
| Price | Negotiations |
| Packaging Details | 100pc/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ED Ring | Color | Black |
|---|---|---|---|
| Pressure | 60 Mpa | Hardness | 40-90 Shore |
| Temperature | -30℃ ~ + 220℃ | Size | Standard Size Custom Size |
| Material Type | NBR FKM EPDM HNBR | Function | Oil Resistance And Pressure Resistance |
| Highlight | NBR FKM rubber DIN 3869 seal |
||
Product Description
High-quality Wear-resistant NBR/FKM Rubber DIN 3869 ED Seal
Premium Sealing Solutions for Extreme Conditions
Our DIN 3869 ED seals are engineered for high-demand industrial sealing applications, providing exceptional durability and precision sealing performance.
Product Core Features
- Industrial-Grade Materials: Available in NBR (oil-resistant standard) and FKM (high-temperature chemical-resistant) options
- Strict Compliance: Meets DIN 3869 ED standard for dimensional and performance consistency
- Excellent Wear Resistance: Reinforced structural design extends service life in dynamic/static applications
- Broad Applicability: Suitable for hydraulic, pneumatic, fluid handling, and industrial piping systems
- Ready-to-Install: Precision mold manufacturing eliminates additional adjustments, reducing installation costs
Product Overview
Our DIN 3869 ED seals are designed for high-demand industrial sealing applications. Manufactured from high-quality NBR (nitrile rubber) or FKM (fluorocarbon rubber), they ensure reliability under pressure, temperature, and chemical media conditions. These seals are suitable for standard ED-type grooves, offering static or low-speed dynamic sealing solutions, making them an ideal choice for hydraulic fittings, flange connections, and pipe sealing.
Technical Specifications
| Specification | Details |
|---|---|
| Standard Specification | DIN 3869 Type ED |
| Material Options |
NBR (Nitrile Butadiene Rubber): Resistant to mineral oils, fuels, water, and air; temperature range -30°C to +100°C FKM (Fluorocarbon Rubber): Resistant to high temperatures, chemicals, and corrosive media; temperature range -20°C to +200°C |
| Color | NBR (Black), FKM (Brown or Black) |
| Hardness Range | 70°A - 90°A (Customizable upon request) |
| Available Sizes | Inner diameter from 8mm to 200mm (Non-standard customization supported) |
NBR vs. FKM Material Selection Guide
| Features | NBR (Nitrile Butadiene Rubber) | FKM (Fluorocarbon Rubber) |
|---|---|---|
| Temperature Resistance Range | -30°C to +100°C | -20°C to +200°C |
| Oil Resistance | Excellent | Superior |
| Chemical Resistance | Good (Suitable for General Media) | Exceptional (Resistant to Acids, Alkalis, Solvents) |
| Cost | Economical | Premium |
| Recommended Applications | General Hydraulic, Pneumatic, and Water Systems | High-Temperature and Chemically Corrosive Environments, Automotive/Aerospace |
Performance Advantages
- Wear Resistance Design: Special composite formula and structural optimization reduce wear and compression deformation during long-term use
- Sealing Stability: Maintains sealing integrity under pressure fluctuations to prevent leakage
- Environmental Adaptability: NBR is suitable for general industrial environments; FKM is suitable for harsh conditions such as high temperatures and chemical exposure
- Cost-Effective: Long service life reduces replacement frequency and maintenance costs
Application Fields
- Hydraulic Systems: Pipe fittings, valve blocks, pump/motor interfaces
- Pneumatic Equipment: Cylinders, compressed air pipe connections
- Fluid Handling: Flange seals for water, oil, and chemical pipelines
- Industrial Machinery: Hydraulic circuits in engineering machinery, injection molding machines, and machine tools
