PDU ORA Rod Seal/Wiper Ring For Pneumatic Cylinder Piston Rods,PDU 12*16*3.5/4.9,Smc mini-pneumatics Cylinder seals
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | PDU-12*16*3.5/4.9 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.10/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | NBR/FKM | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK | Style | PDU/ORA |
| Size | 12*16*3.5/4.9 | Hardness | 80 Shore A |
| Temperature | -40~100℃ | Quality | FDA,High Quality |
| Application | Cylinder Rod Seal | ||
| Highlight | PDU ORA Rod Seal |
||
You can tick the products you need and communicate with us in the message board.
| PDU-006 | PDU-008 | |
|---|---|---|
| PDU-010 | PDU-012 | |
| PDU-014 | PDU-016 | |
| PDU-020 | PDU-025 | |
| PDU-030 | PDU-032 | |
| PDU-035 | PDU-040 | |
| PDU-050 | PDU-060 |
Product Description

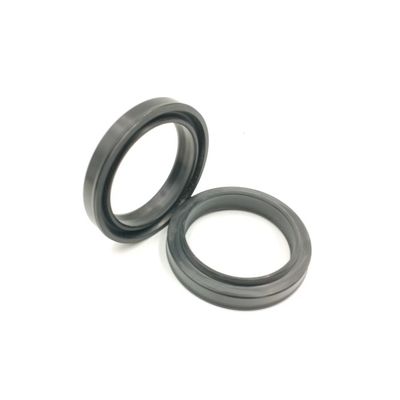

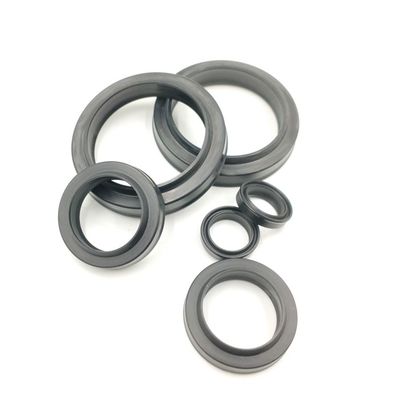

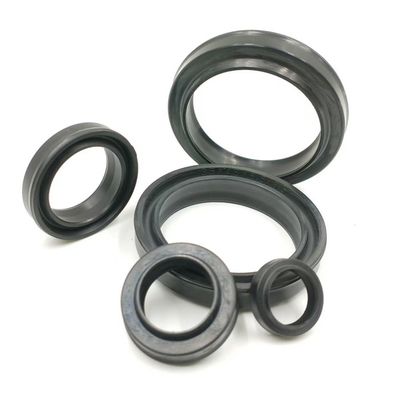

PDU ORA Rod Seal/Wiper Ring for Pneumatic Cylinder Piston Rods
Self-retaining PDU rod seal/wiper ring designed for pneumatic cylinder rods. Compatible with SMC mini-pneumatics cylinder seals.
Product Features
- Excellent sealing performance and durability
- Maintains lubricating fat for extended service life
- Superior dustproof capabilities
- Minimal leakage under operating conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -40 °C to +100 °C |
| Sliding Speed | ≤ 1 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Specifications
Installation Guidelines
The self-retaining rod seal/wiper profile PDU can be manually or automatically snapped into the installation housing while the piston rod is disassembled. Care must be taken to prevent sharp edges from damaging the wiping and sealing lips during assembly. Initial lubrication is essential for achieving maximum operational life.
Frequently Asked Questions
How to choose materials?
Material selection depends on the operating environment, including media type, temperature range, pressure conditions, and other application-specific factors.
How to deliver the goods?
For small orders, we ship via express carriers including DHL, FEDEX, UPS, and TNT. For larger orders, we offer air freight and sea freight options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for shipping costs.
How is the quality?
All manufacturing processes adhere to ISO-9001:2015 quality standards, with 100% inspection conducted before shipment to ensure product reliability.
