MYA Pneumatic Sealing For Smc Compact Type Parallel Style Air Gripper JMHZ2,mya8 11 2.1,sakagami mya/myn
| Place of Origin | CHINA |
|---|---|
| Brand Name | DZK |
| Certification | ROHS |
| Model Number | MYA-008 |
| Document | DZK-Pneumatic seals.pdf |
| Minimum Order Quantity | 100PCS |
| Price | USD 0.06/PCS |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
Product Details
| Material | NBR/FKM | Standard Or Nonstandard | SAKAGAMI Standard |
|---|---|---|---|
| Color | BLACK | Style | MYA/MYN |
| Size | 8*11*2.1 | Hardness | 80 Shore A |
| Temperature | -40~100℃ | Quality | FDA,High Quality |
| Application | Cylinder Piston&rod Seal | ||
| Highlight | MYA Pneumatic Sealing |
||
You can tick the products you need and communicate with us in the message board.
| MYA-003 | MYA-004 | |
|---|---|---|
| MYA-005 | MYA-006 | |
| MYA-007 | MYA-008 | |
| MYA-009 | MYA-010 | |
| MYA-10A | MYA-011 | |
| MYA-012 | MYA-13.6 | |
| MYA-014 | MYA-015 | |
| MYA-016 | MYA-018 | |
| MYA-020 | MYA-021 | |
| MYA-022 | MYA-024 | |
| MYA-030 | MYA-034 |
Product Description

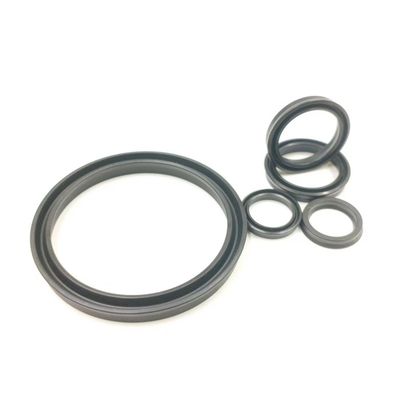

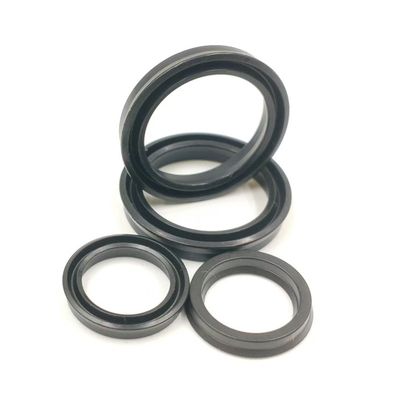

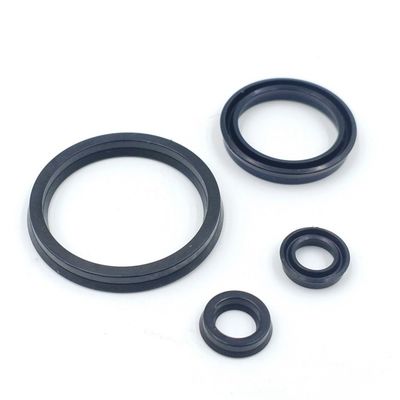

MYA Pneumatic Sealing for SMC Compact Type Parallel Style Air Gripper
MYA sealing components are engineered for pneumatic systems, providing reliable gas sealing and leak prevention to ensure optimal cylinder performance. These seals are specifically designed for small cylinders, valves, and other compact equipment applications.
Key Features
- Compact Cross-Section Design: Small cross-sectional dimensions enable installation in space-limited environments, making them ideal for precision instruments and compact pneumatic tools.
- Superior Sealing Performance: Effectively prevents gas or liquid leakage, maintaining system stability and ensuring reliable equipment operation in both static and dynamic sealing applications.
- Excellent Wear Resistance: Withstands prolonged friction during operation, ensuring extended service life and reduced maintenance frequency in high-cycle applications.
- Wide Temperature Range: Maintains consistent performance across varying temperature conditions, providing reliable sealing functionality in both high and low temperature environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Pressure | ≤ 16 bar |
| Operating Temperature | -40 °C to +100 °C |
| Sliding Speed | ≤ 0.5 M/S |
| Media Compatibility | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Available Materials
| Material | Temperature Range |
|---|---|
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
Product Specifications
| ITEM | ID | OD | h | H | C | L |
|---|---|---|---|---|---|---|
| MYA-003 | 3 | 6 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-004 | 4 | 7 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-005 | 5 | 8 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-006 | 6 | 9 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-007 | 7 | 10 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-008 | 8 | 11 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-009 | 9 | 12 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-010 | 10 | 13 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-10A | 10 | 14 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-011 | 11 | 15 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-012 | 12 | 16 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-13.6 | 13.6 | 18 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-014 | 14 | 18 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-015 | 15 | 19 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-016 | 16 | 20 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-018 | 18 | 22 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-020 | 20 | 24 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-021 | 21 | 25 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-022 | 22 | 26 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-024 | 24 | 30 | 4.2 | 4.7 | 3.0 | 3.0 |
| MYA-034 | 34 | 40 | 4.2 | 4.7 | 3.0 | 3.0 |
Installation Guidelines
The self-retaining rod seal/wiper profile MYA is manually or automatically snapped into the installation housing while the piston rod is disassembled. Care must be taken to prevent sharp edges from damaging the wiping and sealing lips during assembly. Initial lubrication is essential for achieving maximum operational life.
Frequently Asked Questions
How to choose materials?
Material selection depends on the specific application environment, including media compatibility, temperature range, pressure conditions, and other operational factors.
How to deliver the goods?
For small orders, we deliver via express carriers including DHL, FEDEX, UPS, and TNT. For larger orders, we offer air freight or sea shipping options.
Are you a manufacturer?
Yes, we specialize in manufacturing hydraulic and pneumatic sealing products. Our quality system is ISO 9001:2015 certified, and all materials comply with REACH and RoHS regulations. We accept customization and OEM production.
Do you provide samples? Is it free?
Yes, we provide samples free of charge, but customers are responsible for freight costs.
How is the quality?
All manufacturing processes adhere to ISO-9001:2015 standards, with 100% inspection conducted before shipment to ensure product quality and reliability.
